6kΩ ±5% 10W ±30ppm/℃ Φ10.00mm
±5% 10W 轴向 通孔器 阻燃涂层,安全 绕线
得捷:
RES 6K OHM 5% 10W AXIAL
贸泽:
Wirewound Resistors - Through Hole 10watt 6K 10%
Allied Electronics:
10W 6K0 OHMS VITREOUS 5%
Chip1Stop:
Res Wirewound 6K Ohm 5% 10W 30ppm/ C Conformal AXL
Verical:
Res Wirewound 6K Ohm 5% 10W ±30ppm/C Vitreous Enamel AXL
MASTER:
Res Wirewound 6K Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL
Online Components:
Res Wirewound 6K Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL
Electro Sonic:
Res Wirewound 6K Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL
额定电压DC 720 V
额定功率 10 W
产品系列 20
电阻 6 KΩ
阻值偏差 ±5 %
额定电压 720 V
安装方式 Through Hole
封装 Vitreous Enamel

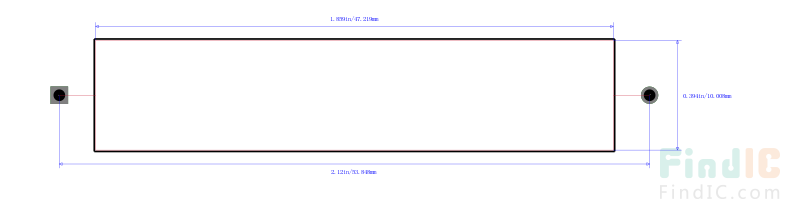

长度 46.8 mm
宽度 46.8 mm
直径 10.0 mm
脚长度 38.1 mm
封装 Vitreous Enamel
材质 Ceramic
工作温度 25℃ ~ 350℃
温度系数 ±30 ppm/℃
产品生命周期 Active
包装方式 Bulk
最小包装 250
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533210080
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
20J6K0 Ohmite | 当前型号 | 当前型号 |
20J6K0E Ohmite | 完全替代 | 20J6K0和20J6K0E的区别 |
