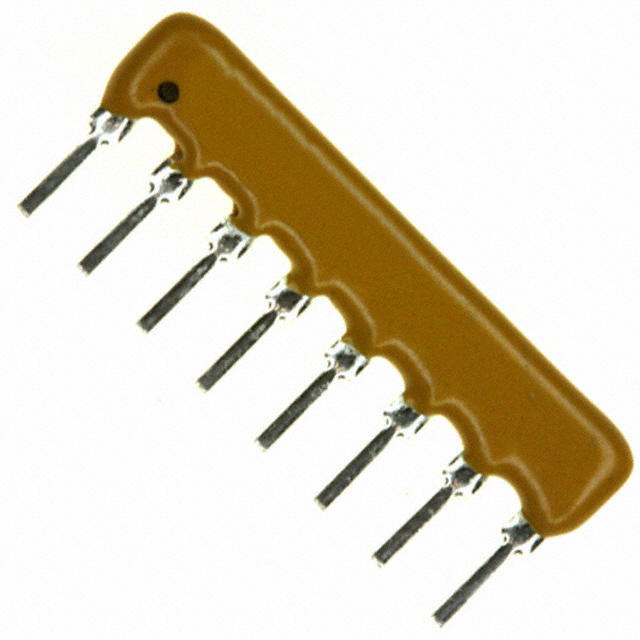

4608X-AP1-222LF

Res Thick Film NET 2.2KΩ 2% 1W ±100ppm/℃ BUS Conformal 8Pin SIP Pin Thru-Hole Ammo Pack

2.2k 欧姆 ±2% 200mW 每元件功率 总线式 7 器网络，阵列 ±100ppm/°C 8-SIP

立创商城:
2.2kΩ ±2%

得捷:
RES ARRAY 7 RES 2.2K OHM 8SIP

贸泽:
Resistor Networks & Arrays 8Pin 2% 2.2K Bussed

艾睿:
If you&s;re looking to conserve space in your circuit design, then this 4608X-AP1-222LF resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 7 resistors have a value of 2.2K Ohm. It has 8 terminals. The 4608X-AP1-222LF part has a pin termination style. This product is 20.27 mm long, 5.08 mm tall and 2.49 mm deep. This device utilizes thick film technology. This product&s;s terminal pitch is 2.54 mm. It has a tolerance of 2%. This part has an operating temperature of -55 to 125 °C.

Electro Sonic:
Res Thick Film NET 2.2K Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Ammo
