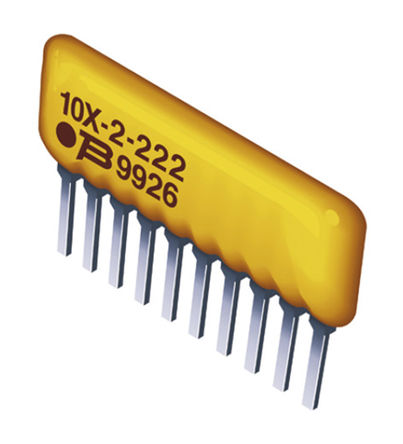

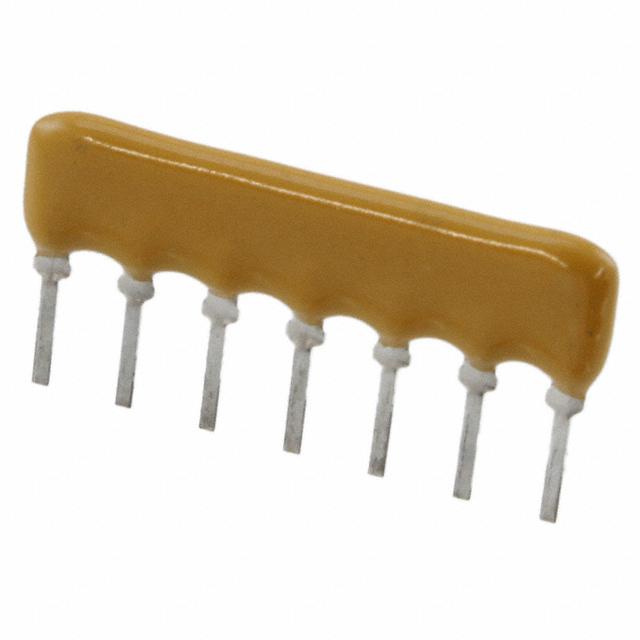

4607X-101-472LF

SIP，接线 4600R 系列薄型与 DIP 兼容 各种引脚封装增强了设计灵活性 推荐用于松香助焊剂和溶剂清洁剂或免清洗助焊剂过程 ### SIL 封装 - 总线

厚膜保护 SIP，接线 4600R 系列

薄型与 DIP 兼容

各种引脚封装增强了设计灵活性

推荐用于松香助焊剂和溶剂清洁剂或免清洗助焊剂过程

立创商城:
4.7kΩ ±2%

欧时:
### 厚膜保护 SIP，接线 4600R 系列薄型与 DIP 兼容 各种引脚封装增强了设计灵活性 推荐用于松香助焊剂和溶剂清洁剂或免清洗助焊剂过程 ### SIL 封装 - 总线

贸泽:

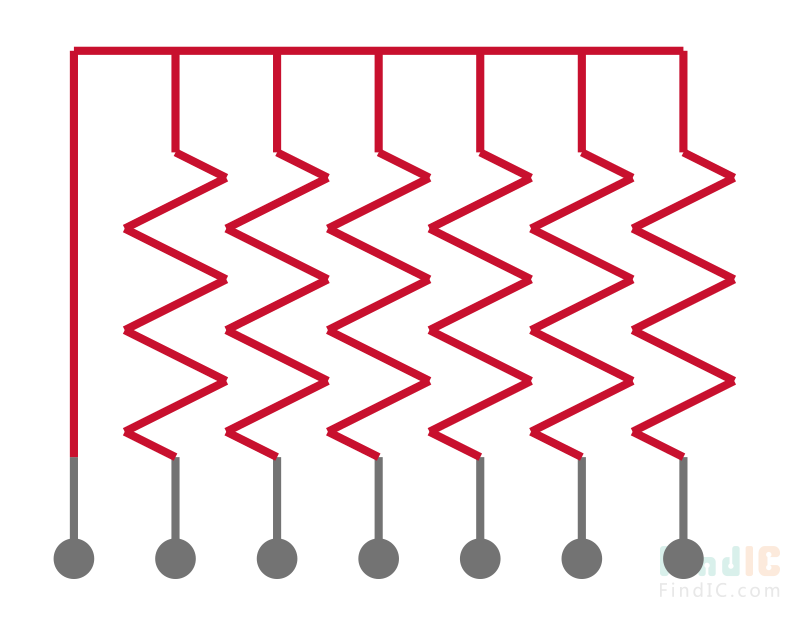

Resistor Networks & Arrays 7pins 4.7Kohms Bussed

e络盟:
固定阵列电阻, 4.7 kohm, 4600X Series, 6 元件, 总线, SIP, 7 引脚

艾睿:

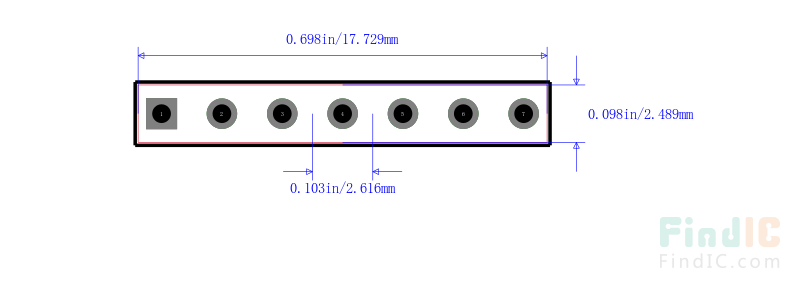

By combining multiple resistors into a single chip, the 4607X-101-472LF resistor array, developed by Bourns, can help you save space and power in your circuit design. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 0.88 W and a power rating per resistor of 0.2 1/5 W. This product&s;s 6 resistors have a value of 4.7K Ohm. It has 7 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 17.73 mm long, 5.08 mm tall and 2.49 mm deep. The 4607X-101-472LF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This device is made with thick film technology. This product&s;s terminal pitch is 2.54 mm.

安富利:
Res Thick Film NET 4.7K Ohm 2% 22/25W ±100ppm/°C BUS Conformal 7-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 4.7K Ohm 2% 0.88W ±100ppm/℃ BUS Conformal Coated 7-Pin SIP Pin Thru-Hole Bulk

Verical:
Res Thick Film NET 4.7K Ohm 2% 0.88W ±100ppm/C BUS Conformal Coated 7-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4607X-101-472LF  Fixed Network Resistor, Bussed, 4.7 kohm, 100 V, 6 Elements, Bussed, SIP, 200 mW

MASTER:
Res Thick Film NET 4.7K Ohm 2% 0.88W ±100ppm/°C BUS Conformal Coated 7-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 4.7K Ohm 2% 0.88W ±100ppm/°C BUS Conformal Coated 7-Pin SIP Pin Thru-Hole Bulk
