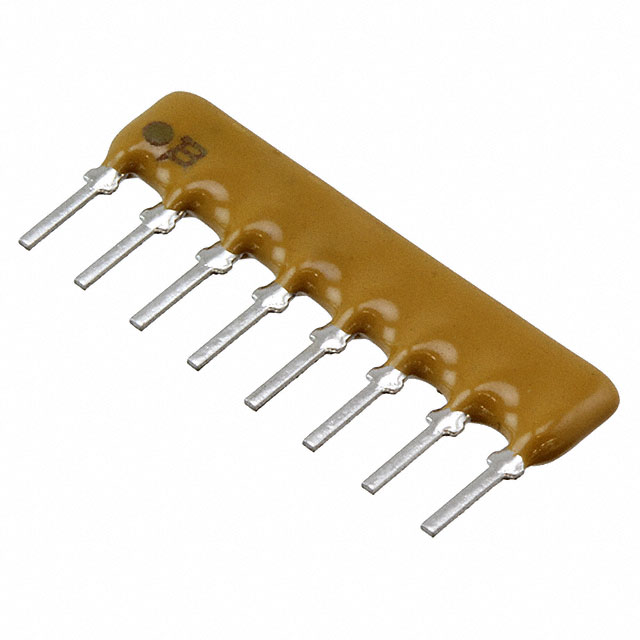

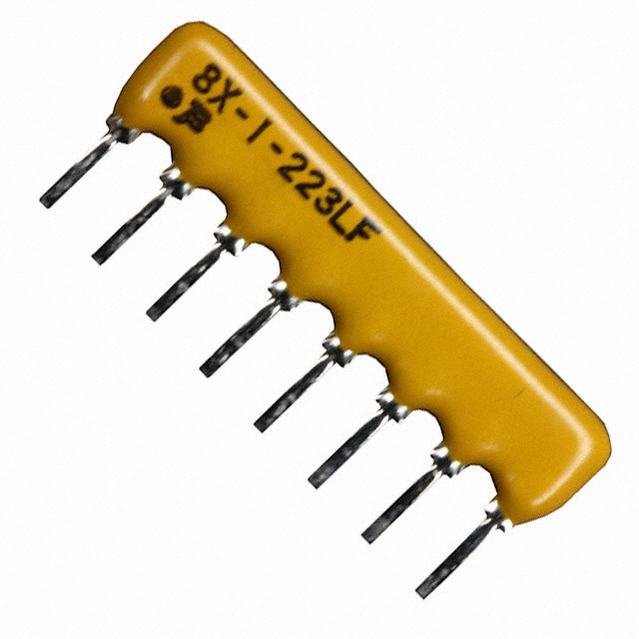

4608X-101-223LF

BOURNS  4608X-101-223LF  电阻网络, 22K

7 总线器

得捷:
RES ARRAY 7 RES 22K OHM 8SIP

立创商城:
22kΩ ±2%

欧时:
Bourns 4600X 系列 22kΩ 7电阻 排阻 4608X-101-223LF, ±2%容差, 总线, 额定1W, SIP 封装

e络盟:
固定阵列电阻, 22 kohm, 4608X系列, 7 元件, 总线, SIP, 8 引脚

艾睿:
Pack multiple resistors into a single chip with this 4608X-101-223LF resistor array from Bourns. This product&s;s 7 resistors have a value of 22K Ohm. This dependable part has a power rating of 1 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. It has a tolerance of 2%. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. The 4608X-101-223LF part has a pin termination style. This product&s;s terminal pitch is 2.54 mm. This product is 20.27 mm long, 5.08 mm tall and 2.49 mm deep.

Allied Electronics:
22kOhm +/-2% Bussed Resistor Network; 7 Resistors; 1W total SIP package

安富利:
Res Thick Film NET 22K Ohm 2% 1W ±100ppm/°C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 22K Ohm 2% 1W 100ppm/ C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk

TME:
Resistor network: X; 22kΩ; No.of resistors:7; THT; 0.2W; ±2%; 100V

Verical:
Res Thick Film NET 22K Ohm 2% 1W ±100ppm/C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Newark:
The Bourns 4600X series are thick film, resistor networks in single inline package. The number of resistor networks and configuration type are selected based on part numbering. These resistor networks helps in space sensitive applications by minimizing space, reducing costs, increasing board yields and reliability by reducing component count. Typical applications include computer, telephone equipment, telecommunication testers, satellites, optical networking and voice recognition equipment.

MASTER:
Res Thick Film NET 22K Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Online Components:
Res Thick Film NET 22K Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 22K Ohm 2% 1W ±100ppm/°C BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
