ACPP080539RBE概述

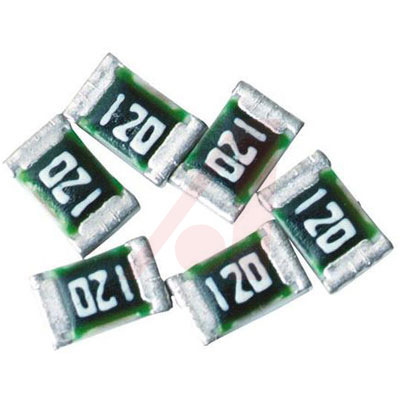

ARCOL/OHMITE ACPP080539RBE 片式电阻器, 表面贴装, 精密钝化, ACPP Series, 39 ohm, 100 V, 0805 [2012公制], 100 mW, ± 0.1%
The ACPP0805 series from /Ohmite are thin film, precision surface mount passivated resistors.
- .
- Resistance values ranges from 10 ohm to 1Mohm
- .
- 0805 case size
- .
- Passivated range for superior humidity performance
- .
- Operating temperature range from -55°C to 155°C
- .
- Available with ±0.1% and ±0.25% tolerance values
- .
- Temperature coefficient of ±15ppm/°C, ±25ppm/°C, ±50ppm/°C
- .
- Continuous working voltage is 100V and rated power is 100mW
ACPP080539RBE中文资料参数规格
技术参数
额定电压DC 100 V
额定功率 100 mW
电阻 39 Ω
阻值偏差 ±0.1 %
额定电压 100 V
封装参数
安装方式 Surface Mount
封装公制 2012
封装 0805
外形尺寸
长度 2 mm
宽度 1.25 mm
封装公制 2012
封装 0805
物理参数
温度系数 ±25 ppm/℃
其他
包装方式 Cut Tape CT
制造应用 电源管理, Portable Devices, Consumer Electronics, 工业, 便携式器材, 消费电子产品, Power Management, Industrial
符合标准
RoHS标准 RoHS Compliant
