CRCW0805750KJNEA

0805 750kΩ ±5% 0.125W1/8W ±200ppm/℃

RES SMD 750K OHM 5% 1/8W 0805

立创商城:
750kΩ ±5% 125mW

艾睿:

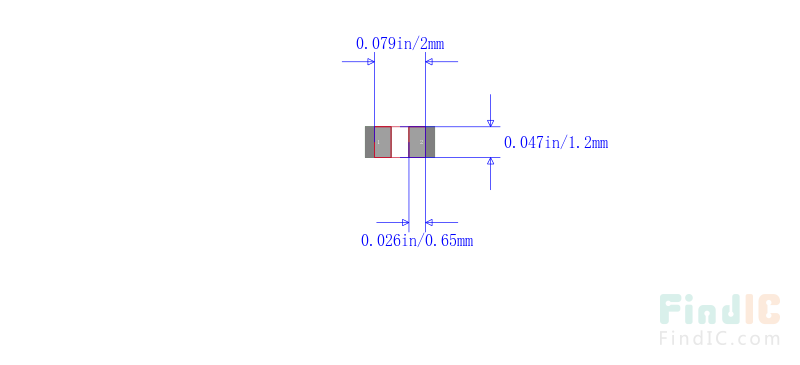

The CRCW0805750KJNEA fixed single surface-mount resistor from Vishay makes it easy to add resistors to your circuit board. This product has a resistance value of 750K Ohm. This part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±200 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with thick film technology. This product is 2 mm long, 0.45 mm tall and 1.25 mm deep. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C.
