HVR3700003304JA100

高欧姆/高压金属膜电阻器引线 High Ohmic/High Voltage Metal Film Leaded Resistors

The HVR37 series from Vishay are high ohmic, high voltage metal film leaded resistors. A homogenous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned electrolytic copper wires are welded to the end-caps. The resistors are coated with a blue, non-flammable lacquer which provides electrical, mechanical and climatic protection. Typical applications include power supplies, electronic ballast, white goods and television.

.

Resistance range includes E24, E96 decade values from 100Kohm to 10Mohm

.

0.5W rated dissipation

.

±5%, ±1% resistance tolerances

.

Temperature coefficient of 200ppm/K

.

55/155/56 climatic category LCT/UCT/days

.

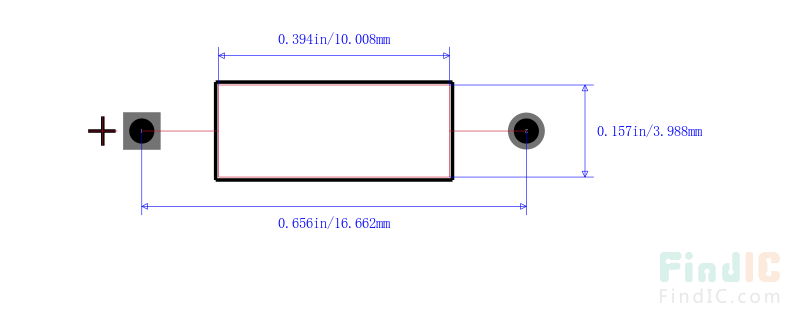

Small size

.

High pulse loading up to 10KV capability

.

Maximum permissible voltage Umax is 3500VDC, 2500Vrms

.

High voltage resistor
