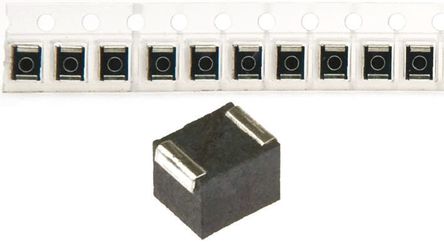

NLV 系列 1210 0.068 uH ±5 % 0.36 Ohm 450 mA 表面贴装 模压 线绕电感
值Inductance| 68nH \---|--- 误差Tolerance| ±5% 额定电流Current Rating| 450mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 27 @ 100MHz 自振谐频率SRFFrequency - Self Resonant| 1.0GHz DC电阻DCRDC Resistance DCR| 0.36Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| NLV Series NLV32 Type FEATURES • The product has good heat durability that withstands lead-free compatible reflow soldering conditions. • Lead-free material is used for the plating on the terminal • The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series. • The product uses metal terminals, which realize excellent con-nection reliability. • Highly heat resistant thermoplastic resin is used to form the exterior package. • From 0.01µH to 100µH, all of the products in the E-12 series are J±5% tolerance products. • This product conforms to the RoHS standard. 描述与应用| NLV系列NLV32类型 特点 该产品具有良好的耐热性,可承受无铅兼容回流焊条件。 无铅材料可用于终端上的镀敷 电气特性,可靠性,形状和焊垫的形状与前NL系列是相同的。 该产品采用金属终端,实现优异的连接可靠性。 外部包装是用高耐热性的热塑性树脂。 在E-12系列所有的产品中J(±5%)公差都是从0.01μH至100μH。 本产品符合RoHS标准。
额定电流 450 mA
容差 ±5 %
电感 68 nH
自谐频率 1 GHz
产品系列 NLV-PF
电阻 360 mΩ
共振频率 1.00 GHz
屏蔽 No
电感公差 ±5 %
测试频率 100 MHz
电阻DC) ≤360 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
精度 ±5 %
电阻DC Max 360 mΩ
安装方式 Surface Mount
引脚数 2

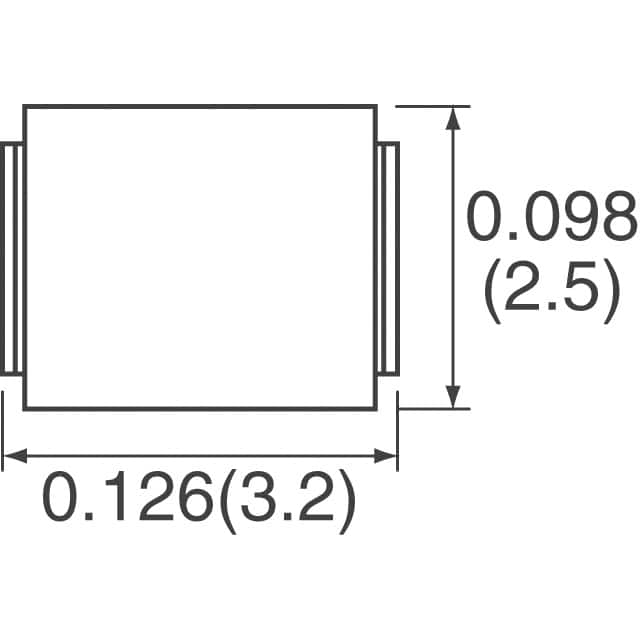

封装 1210
长度 3.4 mm
宽度 2.7 mm
高度 2.4 mm
封装 1210
工作温度 -40℃ ~ 105℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
