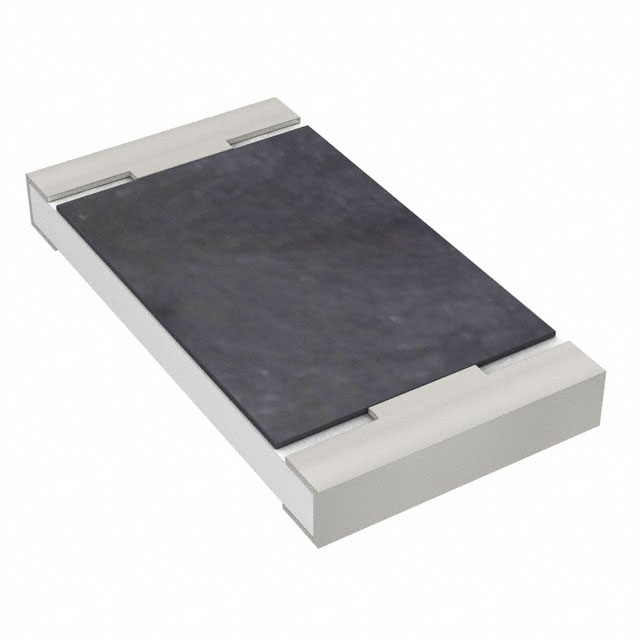

Res SMD 0.056Ω 1% 0.5W1/2W 2010
56 mOhms ±1% 0.5W, 1/2W Chip Resistor 2010 5025 Metric Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Foil
立创商城: 56mΩ ±1% 500mW
得捷: RES 0.056 OHM 1% 1/2W 2010
容差 ±1 %
额定功率 0.5 W
电阻 0.056 Ω
阻值偏差 ±1 %
安装方式 Surface Mount
封装公制 5025
封装 2010
长度 5.08 mm
宽度 2.54 mm
高度 0.64 mm
工作温度 -55℃ ~ 170℃
温度系数 ±50 ppm/℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
