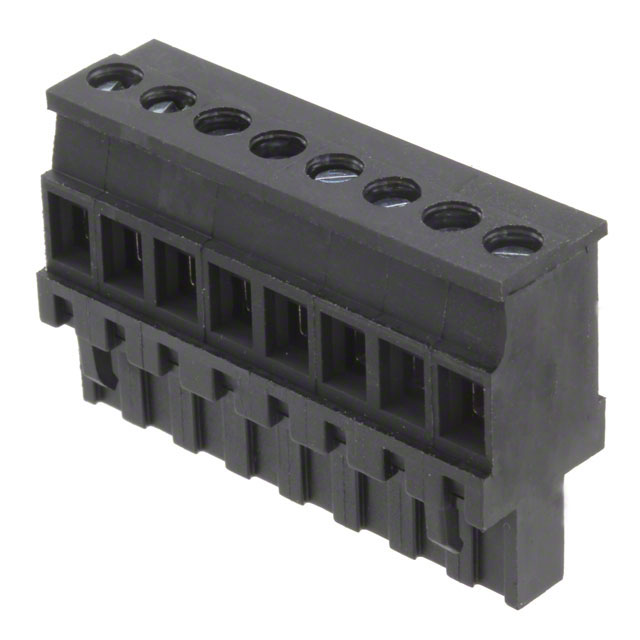

5.08毫米（ 0.200 “ ）间距欧瑞士达™垂直式插头，前导线入口， 8电路 5.08mm .200" Pitch Eurostyle™ Vertical Plug, Front Wire Entry, 8 Circuits
8 Position Terminal Block Plug, Female Sockets 0.200" 5.08mm 90° Free Hanging In-Line
得捷:
TERM BLOCK PLUG 8POS 5.08MM
贸泽:
Molex 5.08MM EURO PLUG VERT FWE BLK 8CKT
艾睿:
Connect test equipment together with other components by using this eurostyle block 0395333008 PCB terminal block from Molex. This F connector&s;s 8 contacts that are made out of phosphor bronze/steel and plated with tin. Its pitch is 5.08 mm. It has a straight body orientation. It has a female type gender. It has a maximum voltage rating of 300 V. This is a 1-row connector. 0395333008 is housed in polyamide 6/6. This device has a maximum current rating of 15 A/contact. It uses the screw termination method. This product is 40.64 mm long, 25.9 mm tall and 12.7 mm deep. Its wire is 12-26 AWG. This quick disconnect terminal has an operating temperature of -40 to 105 °C.
