55510-006TRLF

55510-006TRLF图片1
55510-006TRLF概述

FCI&s;s socket strip 55510-006TRLF header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This SKT connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2 mm. It has a straight body orientation. It has a socket type gender. This is a 2-row connector. It has a maximum voltage rating of 200 VDC|200VAC. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 5.92 mm long, 4.5 mm tall and 4 mm deep. 55510-006TRLF is housed in black plastic. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

6 位置 插座 连接器 0.079"(2.00mm) 表面贴装型 镀金


得捷:
CONN RCPT 6POS 0.079 GOLD SMD


艾睿:
Minitek® 2.00mm, Board to Board Connector, PCB Mounted Receptacle , Vertical , Surface Mount, Double row, 6 Positions, 2.00mm 0.079in Pitch


55510-006TRLF中文资料参数规格
技术参数

触点数 6

绝缘电阻 1000 MΩ

排数 2

额定电流Max 2A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

接触电阻Max 20 mΩ

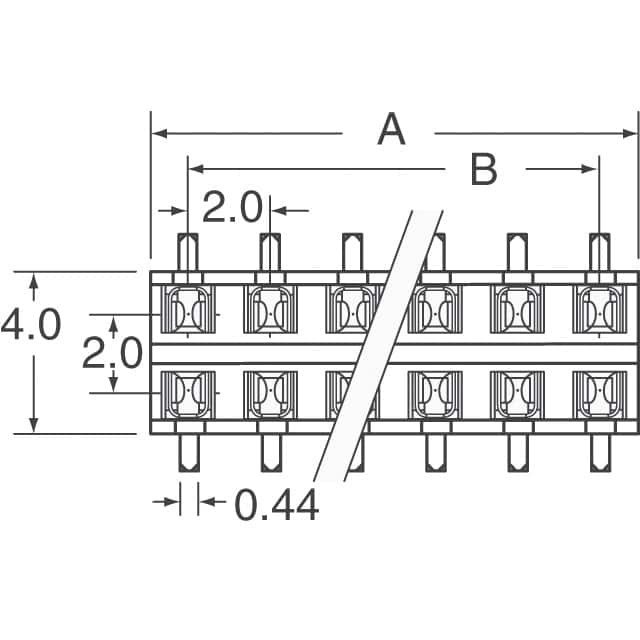

外形尺寸

高度 4.5 mm

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 通用,工业,医疗

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买55510-006TRLF
型号: 55510-006TRLF
制造商: Amphenol ICC
描述:FCI&s;s socket strip 55510-006TRLF header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This SKT connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2 mm. It has a straight body orientation. It has a socket type gender. This is a 2-row connector. It has a maximum voltage rating of 200 VDC|200VAC. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 5.92 mm long, 4.5 mm tall and 4 mm deep. 55510-006TRLF is housed in black plastic. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
