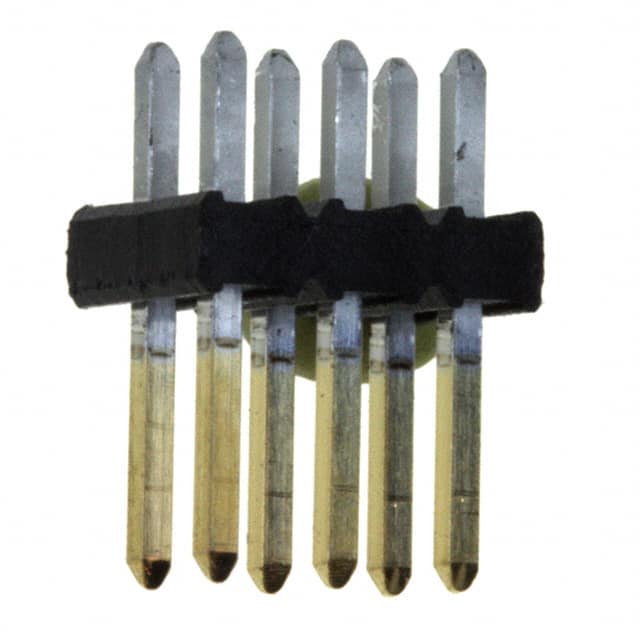

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded 57102-G06-03LF header connector from FCI. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel|gxt over nickel. Its pitch is 2 mm. This is a 2-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 650 VAC. This device has a maximum current rating of 2 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. 57102-G06-03LF is housed in black thermoplastic. This connector has an operating temperature of -55 to 125 °C. This product is 6 mm long, 5.5 mm tall and 4 mm deep.
Connector Header Through Hole 6 position 0.079" 2.00mm
得捷:
CONN HEADER VERT 6POS 2MM
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded 57102-G06-03LF header connector from FCI. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel|gxt over nickel. Its pitch is 2 mm. This is a 2-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 650 VAC. This device has a maximum current rating of 2 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. 57102-G06-03LF is housed in black thermoplastic. This connector has an operating temperature of -55 to 125 °C. This product is 6 mm long, 5.5 mm tall and 4 mm deep.
