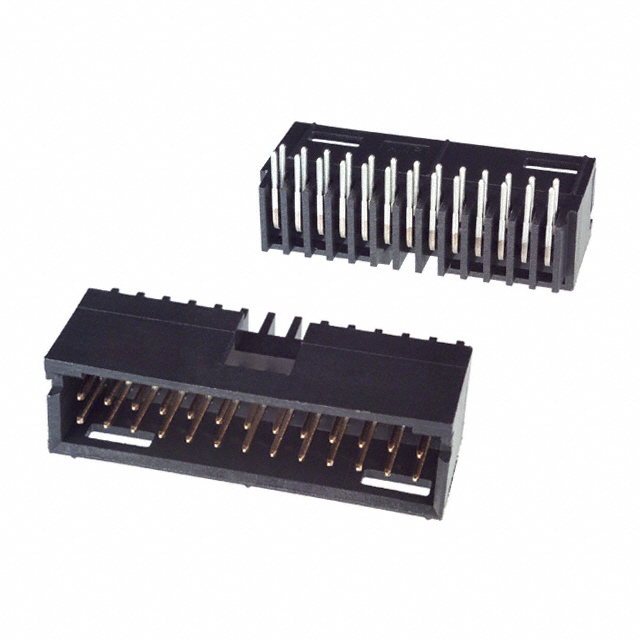

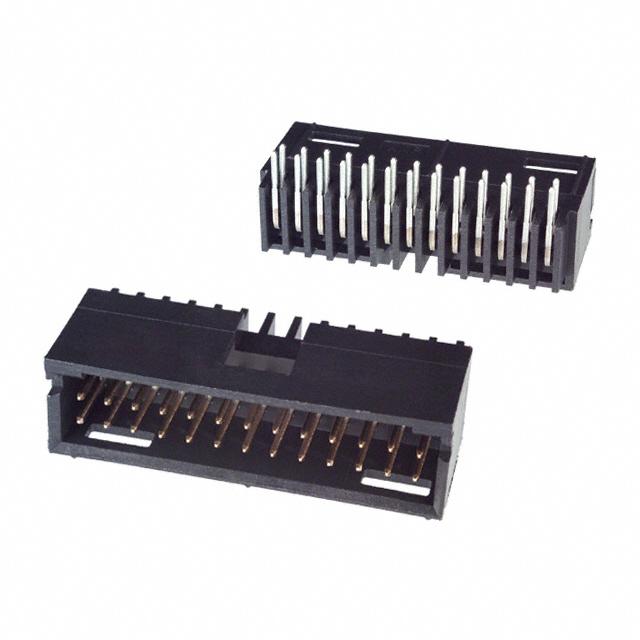

6-103166-1

Conn Shrouded Header HDR 26POS 2.54mm Solder RA Thru-Hole Tray

针座 通孔，直角 26 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 26POS 2.54MM

艾睿:

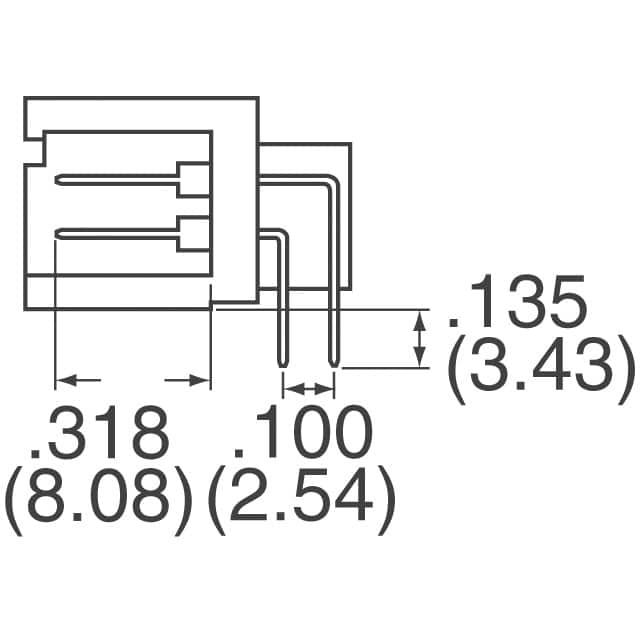

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 6-103166-1 header connector from TE Connectivity. This HDR connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 6-103166-1 is housed in black thermoplastic. This product is 35.86 mm long, 10.49 mm tall and 16.23 mm deep.

Chip1Stop:
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray

Verical:
Conn Shrouded Header 4 Sides HDR 26 POS 2.54mm Solder RA Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  6-103166-1  26 MODII HDR DRRA SHRD LF

MASTER:
HDR ASSY, MOD II, SHROUDED, 4 SIDES, DBL ROW, .100X.100 WITH .025 SQ POSTS

Powell:
.100 inch AMPMODU Headers

Online Components:
26 MODII HDR DRRA SHRD LF

Electro Sonic:
26 MODII HDR DRRA SHRD LF
