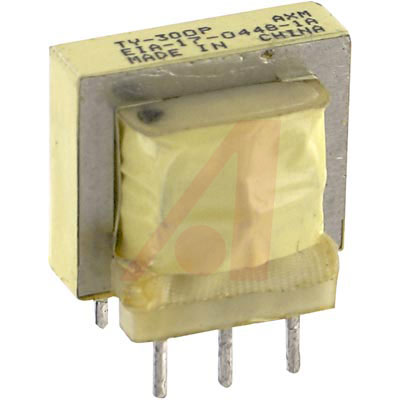

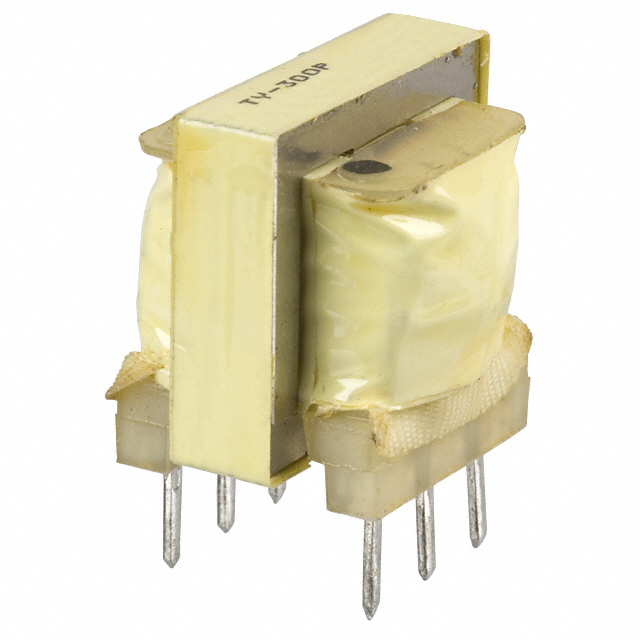

TRIAD MAGNETICS TY-300P 变压器, 数据/声音耦合式
The is a data/voice coupling Triad Audio Transformer designed to meet the requirements for access over leased private lines or through the dial-up switched telephone network. The TY series transformers are used for a variety of applications including impedance matching, isolation, repeat coil, line balancing, bridging and hybrid circuits.
- .
- 300 to 3500Hz Data/voice frequency range
- .
- 800 to 3500Hz Data frequency range
- .
- 1500VAC Dielectric strength
频率 300Hz ~ 3500Hz
额定电流 0 A
额定功率 4 W
隔离电压 1500 VAC
工作温度Max 85 ℃
工作温度Min -20 ℃
安装方式 Through Hole
引脚数 6
封装 DIP
长度 20.6 mm
宽度 18.2 mm
高度 18.8 mm
封装 DIP
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Communications & Networking, Audio, 通信与网络, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8504408500
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TY-300P Triad Magnetics | 当前型号 | 当前型号 |
TY-300P-B Triad Magnetics | 完全替代 | TY-300P和TY-300P-B的区别 |
