695405151122

板至板连接, 1.5 mm, 5 触点, 插座, WR-LECO Series, 表面安装　, 1 排

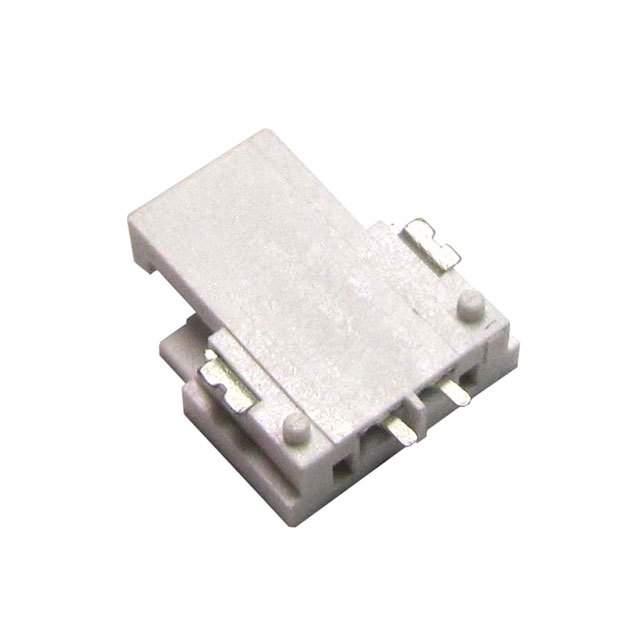

The from Wurth Elektronik is a 5 pin 1.5mm pitch SMT angled receptacle connector WR-LECO. It is made of phosphor bronze material mat tin over nickel contact plating.

.

White colour

.

PA6T insulator material

.

UL94-V0 insulator flammability rating

.

Operating temperature range from -20°C to +85°C

.

Insulation resistance of 1000Mohm

.

Stamped contact type

.

25 mating cycles, contact resistance of 20mohm

.

Rated current of 1A

.

Working voltage 150V AC

.

Withstanding voltage 1300V AC
