973599101

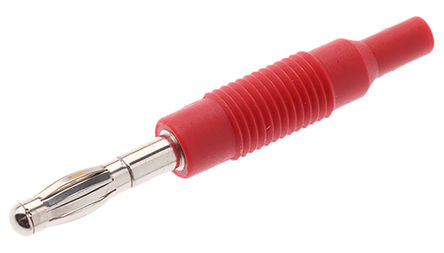

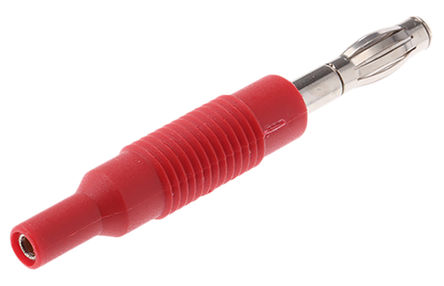

Adaptor Plug 4 mm → 2 mm MZS 4This adaptor plug has a 4 mm male plug and a 2 mm female connector. Reference voltage: | 50 V ---|--- Continuous current: | 6 A Volume resistance: | 6 mΩ Temperature range: | -20 °C → +60 °C ### 4mm 适配器温度范围：+ 50°C（除非另有说明）

Injection-moulded adapter plug from 4 mm diameter plug to 2 mm diameter socket. This adapter plug enables the use of 2 mm system plugs and 4 mm system measuring leads.

.

4 mm system

.

Plugs

.

30 VAC / 60 VDC rated voltage 1

.

O 3 measurement cat. acc. to IEC 61010

.

6 A rated current 1

.

PP housing material

.

1 for normal environmental conditions -5°C to +40°C

.

3 without rated measurement category, for other circuits that are not directly connected to mains
