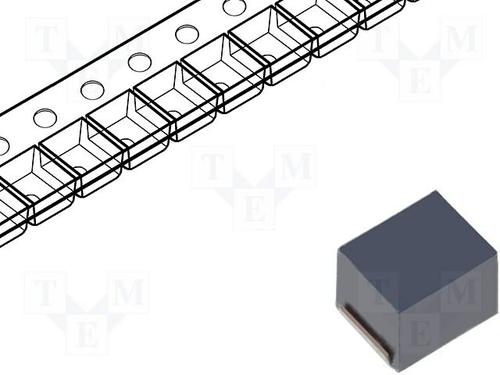

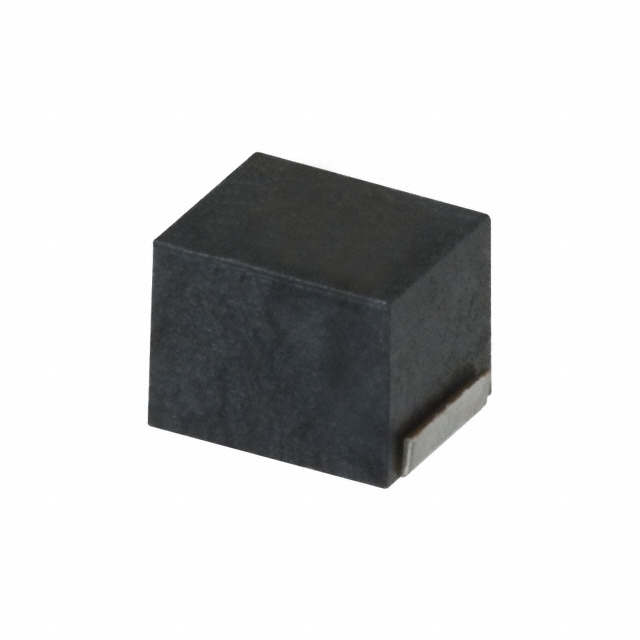

NLCV32T-PFR 系列 1210 150 uH 10 % 100 mA SMD 线绕 电感
固定器
得捷:
FIXED IND 150UH 100MA 7.93OHM SM
立创商城:
150uH ±10% 6.1Ω
艾睿:
Make any circuit look clean and compact using this power NLCV32T-151K-PF surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 150u H. Its test frequency is 796K Hz, while its minimum self-resonant frequency is 8M Hz. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 7.93 Ohm. It has a tolerance of 10%. This product is 3.4 mm long, 2.4 mm tall and 2.7 mm deep. This device is made with wirewound technology.
安富利:
Ind Power Unshielded Wirewound 150uH 10% 796KHz 20Q-Factor 100mA 1210 T/R
Chip1Stop:
Ind Power Unshielded Wirewound 150uH 10% 796KHz 20Q-Factor Ferrite 100mA 3.2 x 2.5 mm T/R
TME:
Inductor: wire; SMD; 1210; 150uH; 100mA; 6.1Ω; Q:20; ftest:0.796MHz
Verical:
Inductor Power Molded/Unshielded Wirewound 150uH 10% 796KHz 20Q-Factor Ferrite 0.1A 7.93Ohm DCR 1210 T/R
Newark:
# TDK NLCV32T-151K-PF Surface Mount High Frequency Inductor, NLCV Series, 150 µH, 100 mA, 1210 [3225 Metric], Wirewound
MASTER:
Inductor Power Unshielded Wirewound 150uH 10% 796KHz 20Q-Factor Ferrite 100mA 7.93Ohm DCR 1210 T/R
Electro Sonic:
Inductor Power Unshielded Wirewound 150uH 10% 796KHz 20Q-Factor Ferrite 100mA 7.93Ohm DCR 1210 T/R
Win Source:
150μH Unshielded Wirewound Inductor 100mA 7.93 Ohm Max 1210 3225 Metric
额定电流 100 mA
容差 ±10 %
电感 150 µH
自谐频率 8 MHz
Q值 20.0
产品系列 NLCV-PF
电阻 6.10 Ω
屏蔽 No
电感公差 ±10 %
测试频率 796 kHz
电阻DC) 6.1 Ω
额定电流DC 100 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
精度 ±10 %
电阻DC Max 7.93 Ω
安装方式 Surface Mount
引脚数 2
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 2.2 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 105℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NLCV32T-151K-PF TDK 东电化 | 当前型号 | 当前型号 |
NLC322522T-151K 东电化 | 类似代替 | NLCV32T-151K-PF和NLC322522T-151K的区别 |
ELJ-FA151KF 松下 | 功能相似 | NLCV32T-151K-PF和ELJ-FA151KF的区别 |
