HMC1010LP4ETR

ANALOG DEVICES  HMC1010LP4ETR  芯片, RMS功率探测器, 3.9GHZ, HQFN-24

Product Details

The HMC1010LP4E Power Detector is designed for RF power measurement, and control applications for frequencies up to 3.9 GHz. The detector provides an accurate RMS representation of any RF/IF input signal. The output is a temperature compensated monotonic, representation of real signal power, measured with an input sensing range of 60 dB.

The HMC1010LP4E is ideally suited to those wide bandwidth, wide dynamic range applications, requiring repeatable measurement of real signal power, especially where RF/IF wave shape and/or crest factor change with time.

The integration bandwidth of the HMC1010LP4E is digitally programmable with the use of input pins SC I1- 4 with a range of more than 4 decades. This allows the user to dynamically set the operation bandwidth providing the capability of handling different types of modulations on the same platform.

The HMC1010LP4E features an internal op-amp at output stage, which provides for slope & intercept adjustments and enables controller application.

Applications

.

Log –> Root-Mean-Square RMS Conversion

.

Received Signal Strength Indication RSSI

.

Transmitter Signal Strength Indication TSSI

.

RF Power Amplifier Efficiency Control

.

Receiver Automatic Gain Control

.

Transmitter Power Control

### Features and Benefits

.

±1 dB Detection Accuracy to 3.9 GHz

.

Input Dynamic Range: -50 to +10 dBm

.

Digitally Programmable Integration Bandwidth

.

RF Signal Wave Shape & Crest Factor Independent

.

+5V Operation from -40°C to +85°C

.

Excellent Temperature Stability

.

Power-Down Mode

.

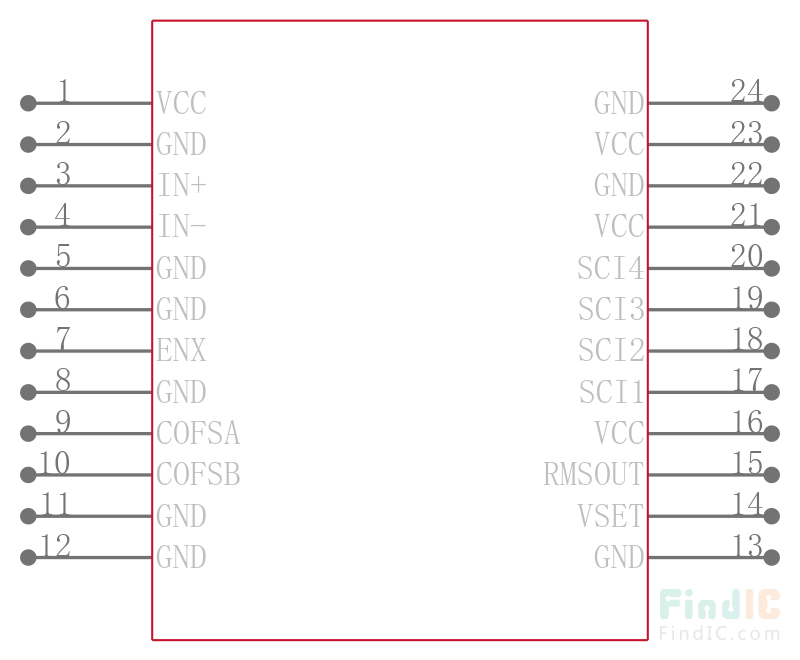

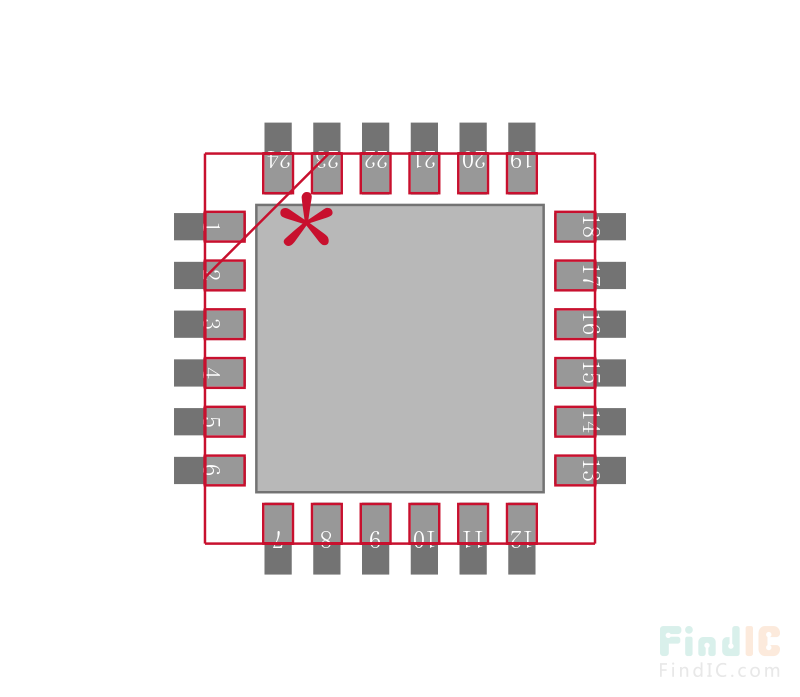

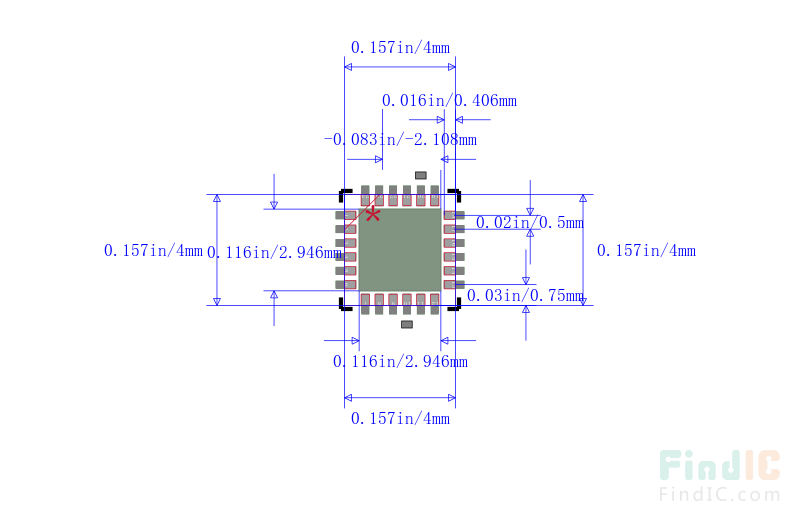

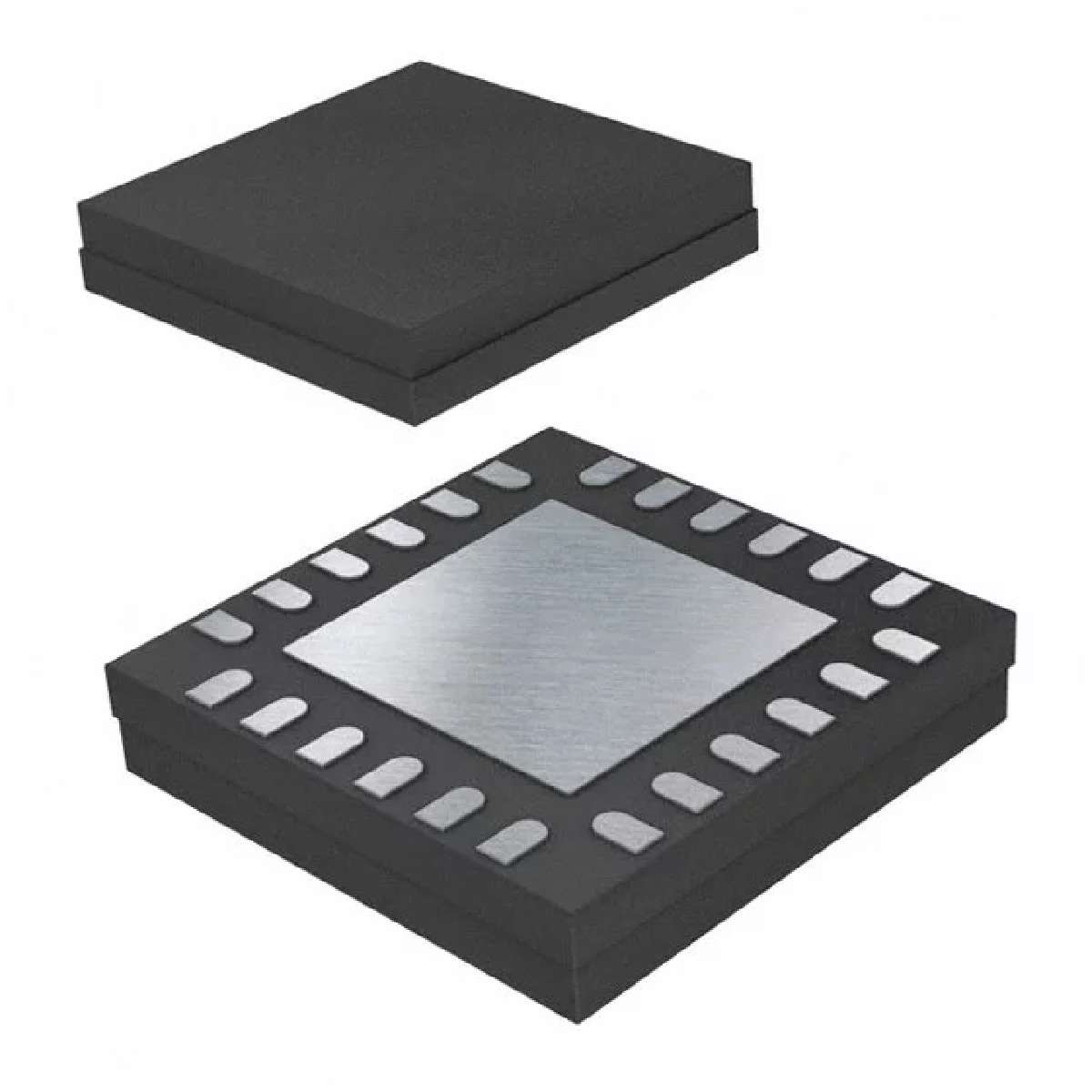

24 Lead 4x4mm SMT Package: 16mm²
