芯片, 存储器, EEPROM, 用于FPGA设置, 1M, 20PLCC
The is a 1Mb FPGA EEPROM Configuration Memory IC provides easy-to-use, cost-effective configuration memory for FPGAs. This EEPROM can configure one or more FPGA devices through a simple serial-access procedure. Users can select the polarity of the reset function by programming four EEPROM bytes. The device also supports a write-protection mechanism within its programming mode. It can be programmed with industry-standard programmers, the Atmel ATDH2200E programming kit or the Atmel ATDH2225 ISP cable. EE programmable serial memories designed to store configuration programs for field programmable gate arrays FPGAs. Compatible with the Atmel® AT6000, AT40K and AT94K Devices, Altera® FLEX®, APEX™ Devices, ORCA®, Xilinx® XC3000, XC4000, XC5200, Spartan®, Virtex® FPGAs. Cascadable read-back to support additional configurations or higher-density arrays.
电源电压DC 5.00 V, 5.50 V max
供电电流 10 mA
针脚数 20
时钟频率 33 MHz
内存容量 125000 B
存取时间Max 60 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 5 V
电源电压Min 3.3 V
安装方式 Surface Mount
引脚数 20

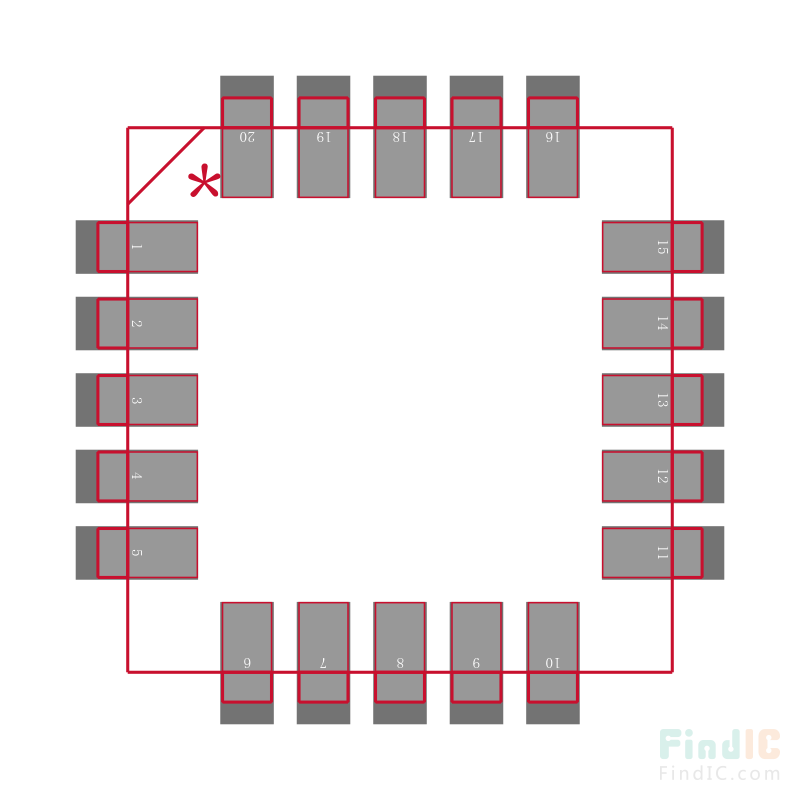

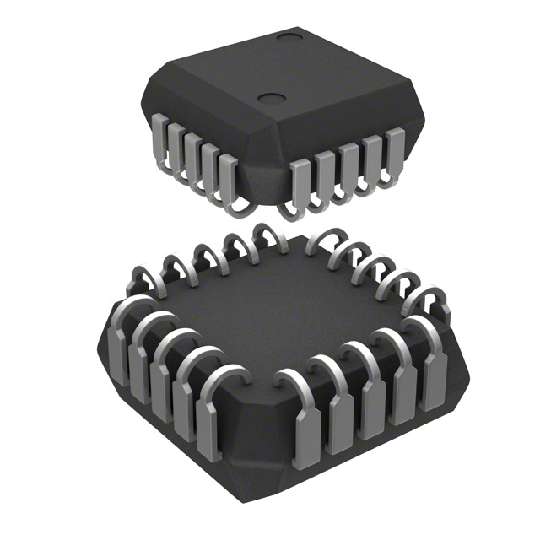

封装 PLCC-20

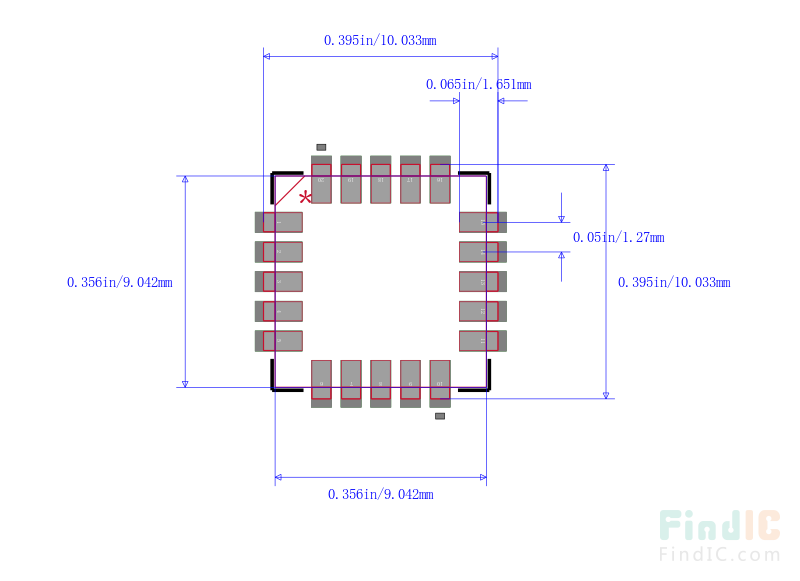

长度 9.04 mm
宽度 9.04 mm
高度 3.68 mm
封装 PLCC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AT17LV010-10JU Microchip 微芯 | 当前型号 | 当前型号 |
AT17LV010A-10JU 微芯 | 类似代替 | AT17LV010-10JU和AT17LV010A-10JU的区别 |
AT17LV002A-10JU 微芯 | 类似代替 | AT17LV010-10JU和AT17LV002A-10JU的区别 |
AT17LV512-10JU 爱特美尔 | 功能相似 | AT17LV010-10JU和AT17LV512-10JU的区别 |
