45 弯头，插入式，单触，外径 8mm

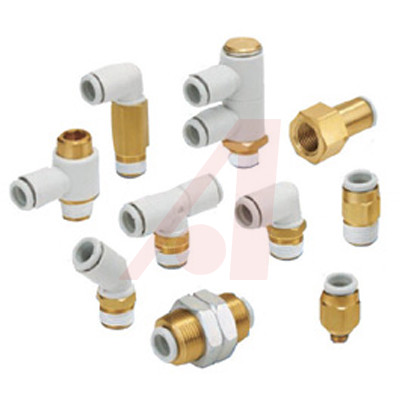

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
欧时:
45 弯头，插入式，单触，外径 8mm
Allied Electronics:

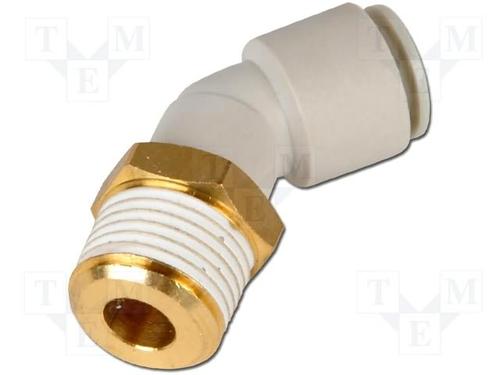

Fitting, 45 deg male elbow, for 8mm tube, 1/4PT port
TME:
Push-in fitting; threaded, angled 45°; R 1/4"; outside; -1÷10bar
工作温度 -5℃ ~ 60℃
Type of pneumatic accessories push-in fitting
Splice terminal variant threaded, angled 45°
Thread R 1/4"
Kind of thread outside
Cable external diameter 8mm
Working pressure -1...10bar
Operating temperature -5...60°C
Body material brass, polypropylene
Pneumatic components features adjustable in range 360°
RoHS标准 RoHS Compliant
