NC7SZ14L6X

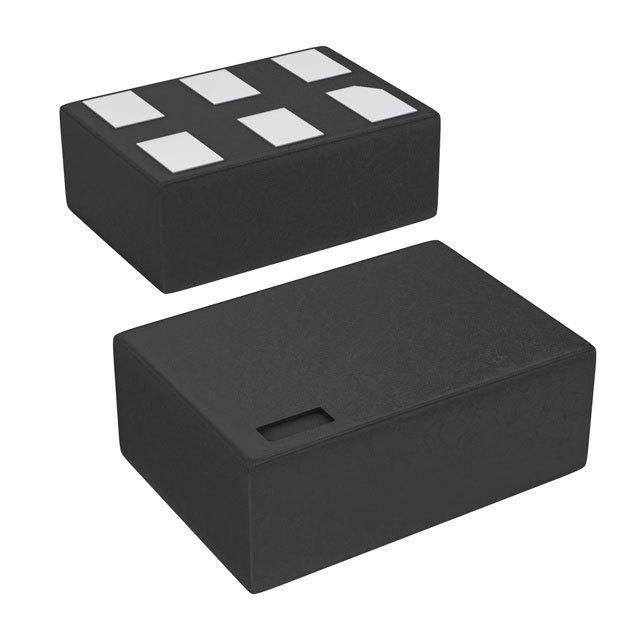

FAIRCHILD SEMICONDUCTOR  NC7SZ14L6X  非门, 施密特触发, 1输入, 1门, 1.65V至5.5V, MLP-6

逻辑类型Logic Type| 反相施密特触发器 Inverting Schmitt trigger \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 1.65V~5.5V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -32mA，32mA 低逻辑电平Logic Level - Low| 0.2V~1.2V 高逻辑电平Logic Level - High| 1.4V~3.6V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 5.9ns @ 5V，50pF Description & Applications| Features TinyLogic®UHS Inverter with Schmitt Trigger Input Ultra-High Speed: tPD 3.7ns Typical into 50pF at 5V VCC High Output Drive: ±24mA at 3V VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX when Operated at 3.3V VCC Power Down High Impedance Inputs/Outputs Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPak™ Packages Space-Saving SOT23 and SC70 Packages 描述与应用| 特性 TinyLogic®UHS反相器具有施密特触发器输入 超高速的TPD3.7ns（典型值）到50PF在5V VCC 高输出驱动器的±24mA电流在3V VCC 宽广的VCC工作电压范围：1.65V到5.5V 操作时，匹配性能LCX在3.3V VCC 掉电高阻抗输入/输出 过电压耐受输入方便5V到3V 翻译 专有的噪声/ EMI抑制电路 超小型的MicroPak™软件包 节省空间的SOT23和SC70封装
