FAIRCHILD SEMICONDUCTOR NC7SZ74L8X 触发器, 互补输出, 正沿, D, 250 MHz, MLP, 8 引脚
The is a single CMOS D-type Flip-flop with preset and clear from "s ultra-high-speed series of TinyLogic®. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive, while maintaining low static power dissipation over a very broad VCC operating range of 1.65 to 5.5V VCC. The inputs and outputs are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V, independent of VCC operating voltage. The signal level applied to the D input is transferred to the Q output during the positive-going transition of the clock pulse.
频率 250 MHz
电源电压DC 1.65V min
输出接口数 1
电路数 1
针脚数 8
时钟频率 200 MHz
位数 1
极性 Non-Inverting, Inverting
输入电容 3 pF
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8

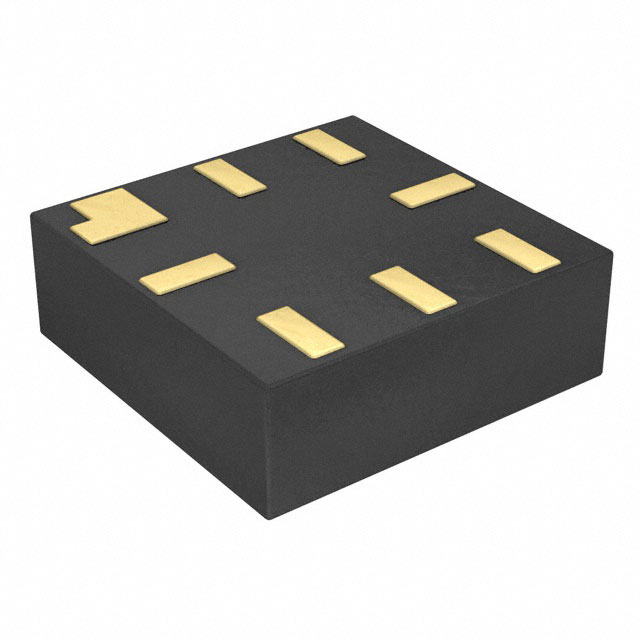

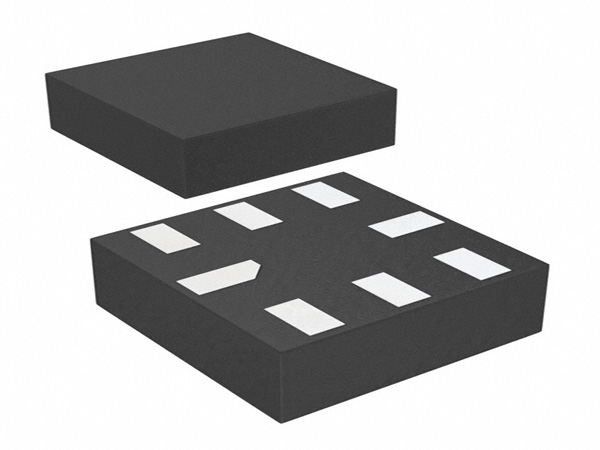

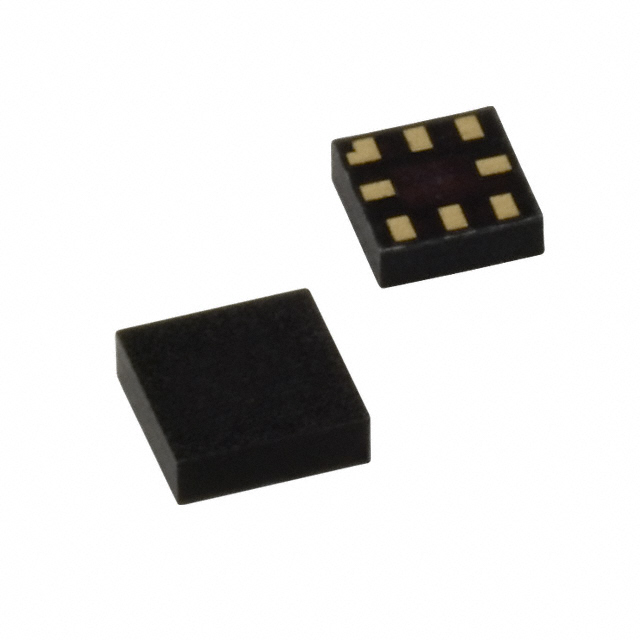

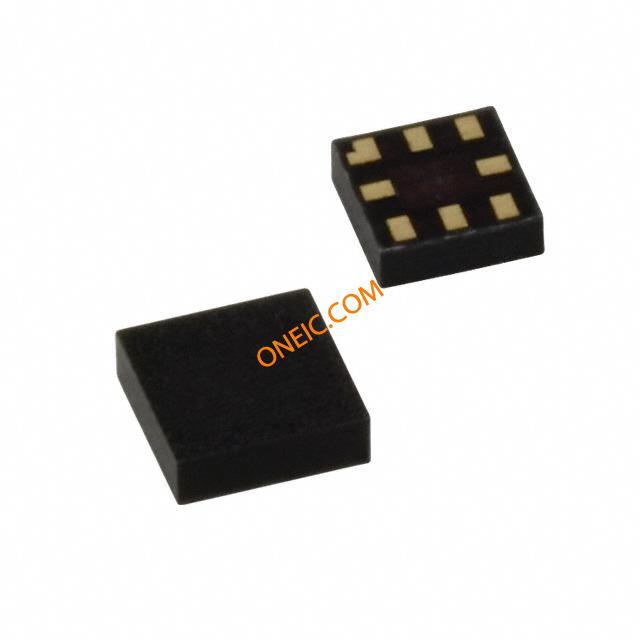

封装 UFQFN-8
长度 1.6 mm
宽度 1.6 mm
高度 0.5 mm
封装 UFQFN-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
