TinyLogic ULP-A,Fairchild Semiconductor### TinyLogic 系列,Fairchild SemiconductorFairchild 的 TinyLogic® 系列包含广泛的高速、低功率、CMOS 单双栅极逻辑功能,可选择六个节省空间的封装:SOT23-5、SC70 6 导线、US8 8 导线,以及 MicroPak 6 和 8 端子无导线封装。减少布线复杂性 缩短金属路线,可最大程度降低 EMI 的产生 可防止未使用的栅极产生不必要的功耗 HS 和 HST 系列旨在用于 5V 或非常低速的应用 UHS 系列特别适用于高速、低电压操作 ULP 系列特别适用于超高速、低电压操作 ULPA 系列特别适用于低功耗、低电压操作
Store state information by enabling this flip flop device from Semiconductor. It has a differential output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has 1 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.9 V, while its maximum is 3.6 V.
电源电压DC 3.30 V
电路数 1
通道数 1
时钟频率 200 MHz
位数 1
极性 Non-Inverting, Inverting
输入电容 2 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.9V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.9 V
安装方式 Surface Mount
引脚数 8

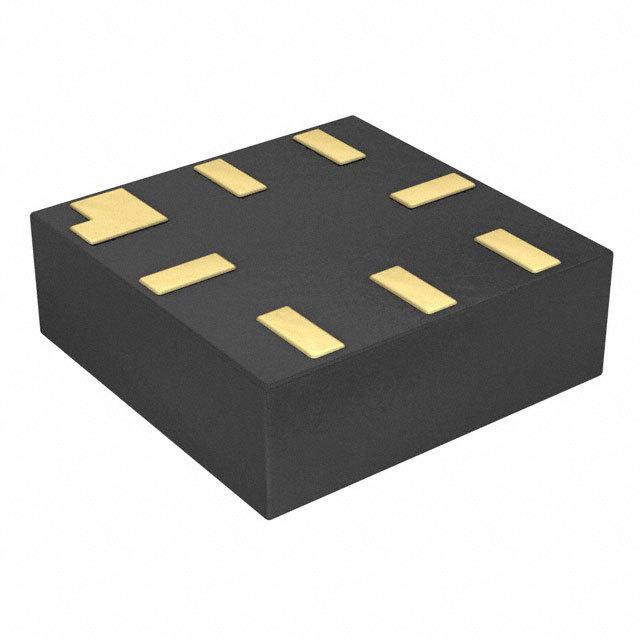

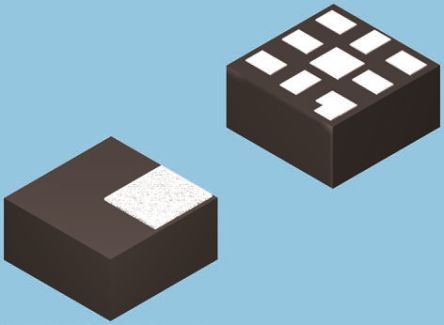

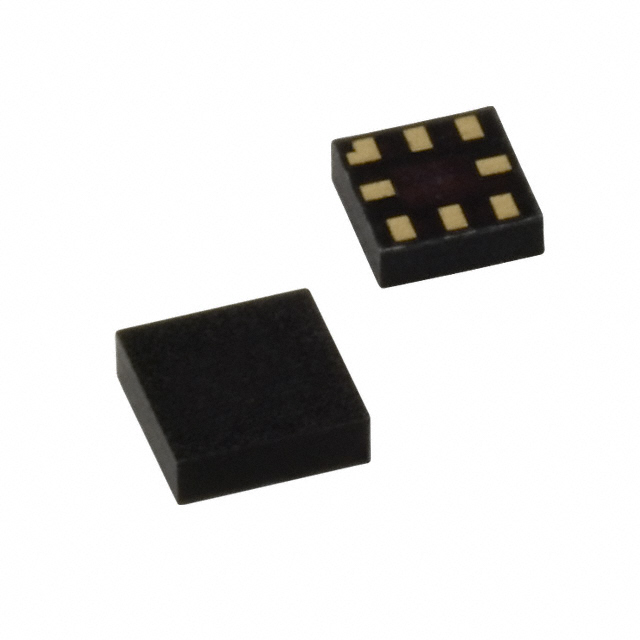

封装 MicroPak-8
长度 1.6 mm
宽度 1.6 mm
高度 0.5 mm
封装 MicroPak-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NC7SV74L8X Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
NC7SP74L8X 飞兆/仙童 | 类似代替 | NC7SV74L8X和NC7SP74L8X的区别 |
