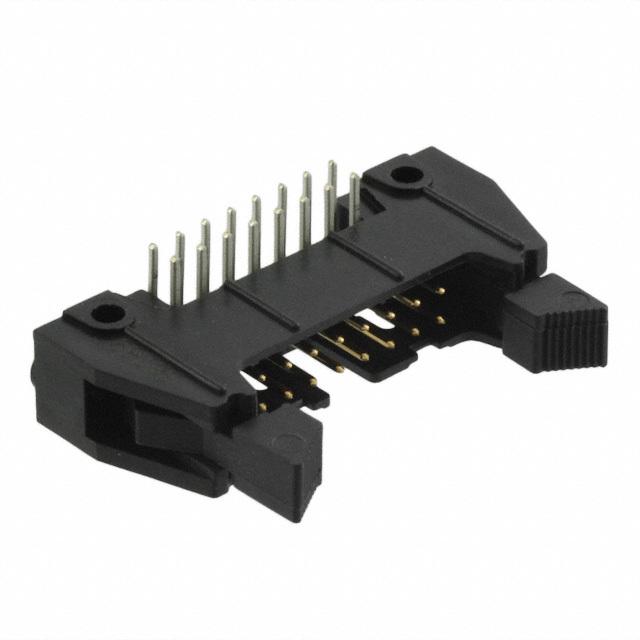

N3408-5202RB

HE 10 angled solder connectors with short locksTransition connectors fitted with long locks / ejectors designed for locking HE 10 female connectors without strain relief accessories. ### 管座，插头和插座 - 3M

HE 10 斜角焊接，带短锁

转换连接器配有长锁/弹出器，设计用于锁定 HE 10 母连接器，不带应力消除附件。

得捷:
CONN HEADER R/A 16POS 2.54MM

欧时:
3M PCB 针座 3000 系列 16路 2.54mm节距 2排 直角 N3408-5202RB, 焊接端接, 2A, 通孔

艾睿:
This ejector N3408-5202RB header connector from 3M is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 16 contacts that are made out of copper alloy and plated with gold over nickel. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 1.75 A. This connector has an operating temperature of -55 to 105 °C. This product is 39.75 mm long, 8.6 mm tall and 24.6 mm deep. It uses the solder termination method. N3408-5202RB is housed in black polychlorinated terphenyl.

安富利:
Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Ejector Header HDR 16 POS 2.54mm Solder RA Side Entry Thru-Hole

Newark:
# 3M  N3408-5202RB  Wire-To-Board Connector, 2.54 mm, 16 Contacts, Header, 3000 Series, Through Hole, 2 Rows
