10位, 12位,乘法D / A转换器 10-Bit, 12-Bit, Multiplying D/A Converters
10-Bit, 12-Bit, Multiplying D/A Converters
The AD7520 and AD7521 are monolithic, high accuracy, low cost 10-bit and 12-bit resolution, multiplying digital-to-analog converters DAC. ’s thin-film on CMOS processing gives up to 10-bit accuracy with TTL/CMOS compatible operation. Digital inputs are fully protected against static discharge by diodes to ground and positive supply.
Features
• AD7520, 10-Bit Resolution; 8-Bit Linearity
• AD7521, 12-Bit Resolution; 10-Bit Linearity
• Low Power Dissipation Max. . . . . . . . . . . . . . . . . 20mW
• Low Nonlinearity Tempco at 2ppm of FSR/oC
• Current Settling Time to 0.05% of FSR . . . . . . . . . . 1.0µs
• Supply Voltage Range . . . . . . . . . . . . . . . . . ±5V to +15V
• TTL/CMOS Compatible
• Full Input Static Protection
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|

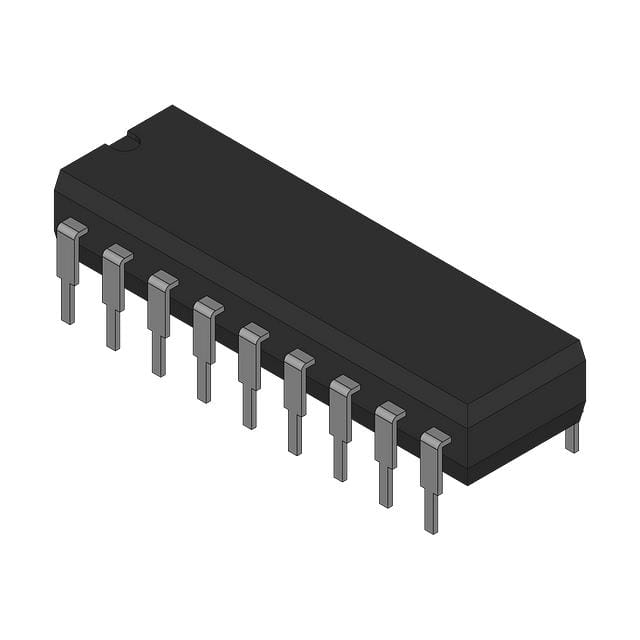

AD7521LN Intersil 英特矽尔 | 当前型号 | 当前型号 |
DAC7541AJU 德州仪器 | 类似代替 | AD7521LN和DAC7541AJU的区别 |
AD7541AKR 亚德诺 | 类似代替 | AD7521LN和AD7541AKR的区别 |
MX7541AJCWN+ 美信 | 类似代替 | AD7521LN和MX7541AJCWN+的区别 |
