ADS6122IRHB25

ADS6122IRHB25图片1
ADS6122IRHB25图片2
ADS6122IRHB25概述

Analog to Digital Converter Low Power 12Bit 65MSPS ADC with selectable parallel CMOS or LVDS outputs Single ADC Pipelined 65MSPS 12Bit Serial 3-Wire/LVDS 32Pin VQFN EP T/R

12 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-VQFN 5x5


得捷:
IC ADC 12BIT PIPELINED 32VQFN


Chip1Stop:
Analog to Digital Converter Low Power 12-bit 65MSPS ADC with selectable parallel CMOS or LVDS outputs Single ADC Pipelined 65Msps 12-bit Serial 3-Wire/LVDS 32-Pin VQFN EP T/R


罗切斯特:
Single ADC Pipelined 65Msps 12-bit Serial 3-Wire/LVDS 32-Pin VQFN EP T/R


ADS6122IRHB25中文资料参数规格
技术参数

电路数 1

位数 12

采样率 65 Msps

功耗 285 mW

输入数 1

封装参数

安装方式 Surface Mount

封装 VFQFN-32

外形尺寸

封装 VFQFN-32

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ADS6122IRHB25引脚图与封装图
ADS6122IRHB25引脚图
ADS6122IRHB25封装图

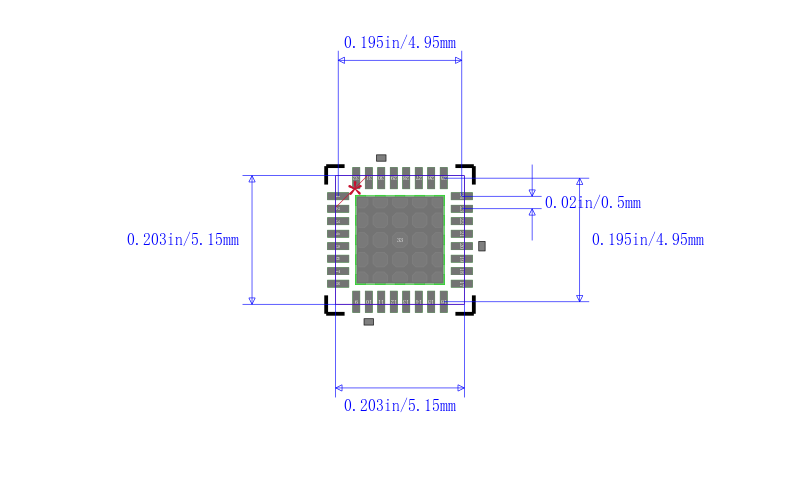

ADS6122IRHB25封装焊盘图
在线购买ADS6122IRHB25
型号: ADS6122IRHB25
制造商: TI 德州仪器
描述:Analog to Digital Converter Low Power 12Bit 65MSPS ADC with selectable parallel CMOS or LVDS outputs Single ADC Pipelined 65MSPS 12Bit Serial 3-Wire/LVDS 32Pin VQFN EP T/R
替代型号ADS6122IRHB25
型号/品牌 代替类型 替代型号对比

ADS6122IRHB25

TI 德州仪器

当前型号

当前型号

ADS6122IRHBT

德州仪器

类似代替

ADS6122IRHB25和ADS6122IRHBT的区别

ADS6122IRHBTG4

德州仪器

类似代替

ADS6122IRHB25和ADS6122IRHBTG4的区别
