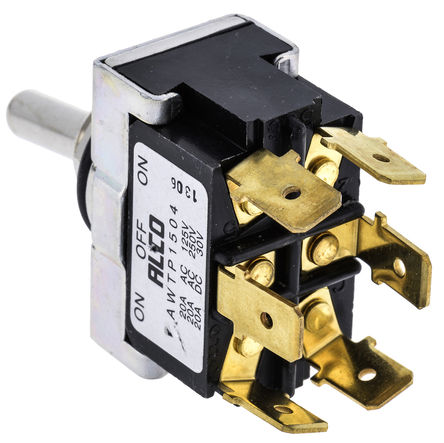

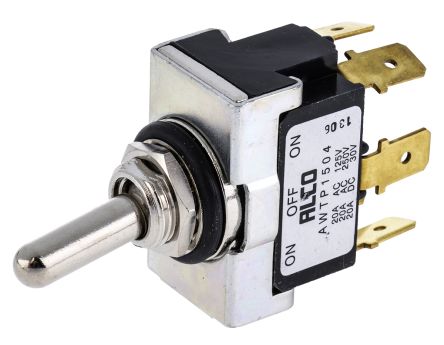

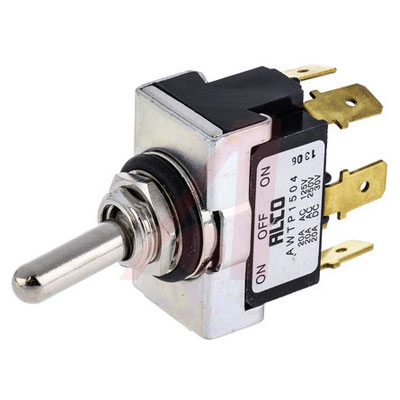

AWTP1504

TE CONNECTIVITY  AWTP1504  拨动开关, A系列, 不发光, DPDT, 开-关-开, 面板, 20 A

防水 IP67

拨动，带镀银触点密封，可防止灰尘或液体进入

通过 250in. 1/4in. 插座或焊接方式连接

在偏置操作中，"开"是指在开关位置上瞬间停留

黄铜执行器和玻璃填充聚酯外壳

### 认可

UL；CSA

欧时:
TE Connectivity IP67 双刀双掷 切换开关 AWTP1504, 开 - 关 - 开, 20 A @ 250 V 交流

立创商城:
AWTP1504

艾睿:
The power AWTP1504 toggle switch from TE Connectivity is a simple way to power on and off various components of your application. This device has a maximum current rating of 20 A @ 250VAC 30VDC. It has a DPDT configuration. This toggle switch has an operating temperature range of -20 °C to 70 °C. The AWTP1504 toggle switch has a quick connect termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 33 mm long, 59.5 mm tall and 21 mm deep.

Allied Electronics:
Alcoswitch; IP67 std DPDT on-off-on toggle switch

Chip1Stop:
Switch Toggle ON OFF ON DPDT Baton Lever Quick Conn 20A 250VAC 30VDC Panel Mount with Threads Bulk

Verical:
Switch Toggle ON OFF ON DPDT Baton Lever Quick Conn 20A 250VAC 30VDC Panel Mount with Threads Bulk

Newark:
# TE CONNECTIVITY  AWTP1504  Toggle Switch, A Series, DPDT, On-Off-On, Panel, 20 A, 250 V
