ACS5SR1J

ARCOL/OHMITE  ACS5SR1J  通孔电阻器, 硅包层, ACS Series, 0.1 ohm, 5 W, ± 5%, 157 V, 轴向引线

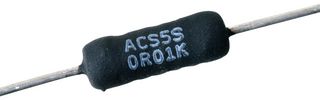

The ACS5S series from /Ohmite are silicone coated axial leaded resistors. Design of the ACS resistor provides a good balance of power density, stability and resistance to environment for a broad range of industrial power applications such as drives and controls. Resistance range include E24 and E12 decade values for values >10K.

.

Inductive resistance range of 0.05ohm to 22Kohm & non inductive resistance range of 0.05ohm to 2Kohm

.

Body diameter is 4.78mm ±0.8 and 0.8mm ±0.02 drill hole

.

35mm ±1 lead length and 12.7mm ±1.5 body length

.

Operating temperature range from -55°C to 275°C

.

Good ratio between power capability and physical size

.

Wound to maximise high pulse capability, low inductive versions available

.

Temperature coefficient of resistance wire is ±20ppm

.

Available with ±1%, ±5% tolerance values

.

Insulation resistance of 1000Mohm > 100V and dielectric withstand voltage is 500V

.

Continuous working voltage is 157V and rated power is 5W
