A6R101RS概述

OMRON ELECTRONIC COMPONENTS  A6R101RS  旋转编码开关, 通孔安装, 10路, 24 VDC, BCD, 25 mA

Rotary DIP Switches, 25 mA @ 24 VDC Contact Rating, 250 VAC for 1 Minute Dielectric Strength

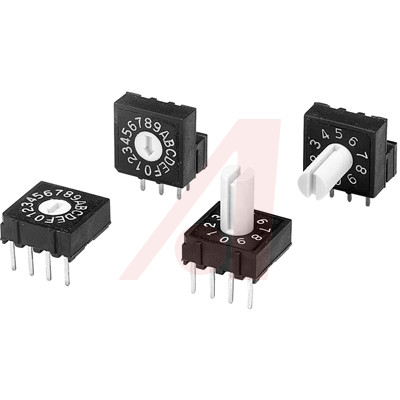

* Series includes top-actuated, side-actuated, flat, and extended- shaft models

* Two different types of terminal arrangements are available for each model to allow flexibility of circuit design

* RoHS compliant

* O-Ring Sealed Construction That Prevents the Ingress of Dirt and Dust

* Rating: 25 mA @ 24 VDC

* Insulation Resistance: 100 M @ 250 VDC

* Operating Temperature: -25° to +80°C

A6R101RS中文资料参数规格
技术参数

额定电压DC 24 V

额定电流 25 mA

绝缘电阻 ≥100MΩ @250VDC

方向 Vertical

针脚数 10

接触电阻 ≤200 MΩ

开断电压 24.0 V

开关电流 25 mA

额定电流Max 0.025 A

工作温度Max 80 ℃

工作温度Min -25 ℃

额定电压 24 VDC

额定电压DC Max 24 V

接触电阻Max 200 mΩ

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

长度 9.8 mm

宽度 9.9 mm

高度 11.8 mm

引脚间距 2.54 mm

物理参数

工作温度 -25℃ ~ 80℃

其他

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC
