A6S8101H

OMRON ELECTRONIC COMPONENTS  A6S8101H  DIP / SIP开关, SPST, SMD, 8 电路, DIP非密封, 24 VDC

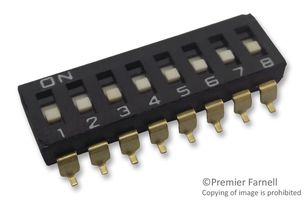

The is a 8-pole surface-mount DIP Switch with standard flat actuator and increased solder heat resistance. Designed to enable replacement of previous A6S model, featuring the same dimensions and improved solder heat resistance peak solder temperature: 260°C. The gold-plated twin contacts and a slide-type, self-cleaning mechanism ensure high reliability.

.

25mA at 24VDC Switching capacity

.

10µA at 3.5VDC Minimum permissible load

.

200mR Maximum contact resistance

.

100MR at 250VDC Minimum insulation resistance

.

500VAC Dielectric strength for 1 minute between terminals

.

30 to 1000gf 0.3 to 9.8N Operating force

.

-20 to 70°C Ambient operating temperature

.

1000 Operations minimum mechanical service life

.

1000 Operations minimum electrical service life
