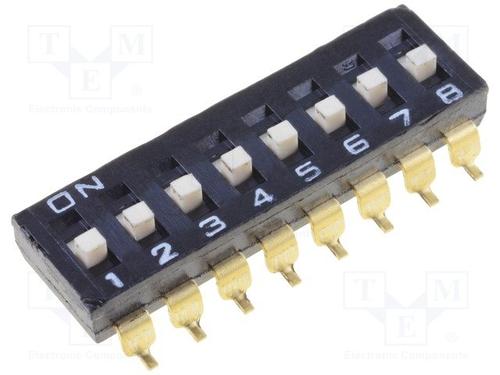

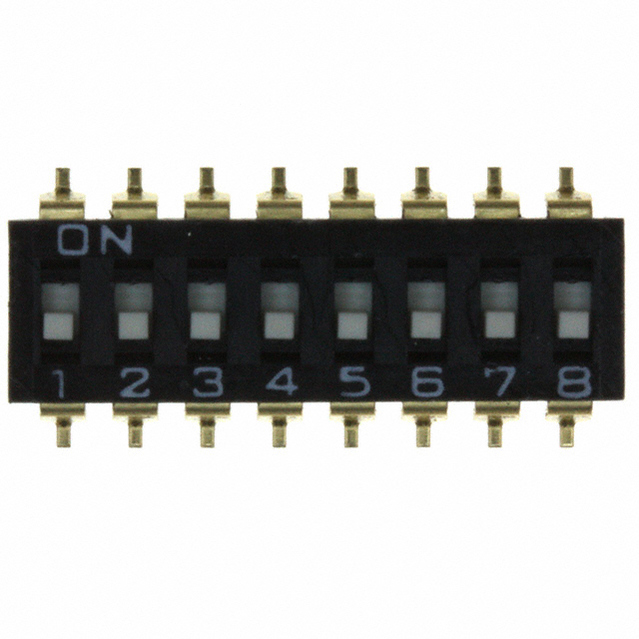

A6S-8104-H

DIL 开关，设计符合 DIL 标准。 可使用集成电路插入机器自动安装。表面安装 扁平执行器，提供密封带版本 镀金触点 触点电阻：200mΩ 最大 绝缘电阻：100MΩ 最小 @ 250V 直流 符合 RoHs 机械寿命：1000 次操作 ### DIL 表面安装### 双在线开关微型开关，配置和操作可选。 请注意，除非另有说明，否则这些开关不适于浸泡清洗。

滑动

表面安装 DIL 开关，设计符合 DIL 标准。 可使用集成电路插入机器自动安装。

表面安装

扁平执行器，提供密封带版本

镀金触点

触点电阻：200mΩ 最大

绝缘电阻：100MΩ 最小 @ 250V 直流

符合 RoHs

机械寿命：1000 次操作

得捷:
SWITCH SLIDE DIP SPST 25MA 24V

欧时:
Omron A6S-8104-H 8位置 滑动 表面安装 DIP 开关, 8P, 25 mA@ 24 V 直流

立创商城:
8位 脚距2.54mm

贸泽:
DIP 开关/ SIP 开关 Dip Switch

艾睿:
Add push button-type user control to your printed circuit board using the A6S-8104-H dual in-line package switch from Omron. It has a SPST configuration. This device has a maximum current rating of 0.025 A @ 24VDC. This DIP switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The A6S-8104-H DIP switch has a gull wing termination style. This product is 21.26 mm long, 4.4 mm tall and 9.8 mm deep. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 24 VDC.

Chip1Stop:
Switch DIP ON OFF 8PST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycle 2.54mm SMD Stick

TME:
Switch: DIP-SWITCH; Poles number:8; ON-OFF; 0.025A/24VDC; 100MΩ

Newark:
# OMRON ELECTRONIC COMPONENTS  A6S-8104-H  DIP / SIP Switch, Raised Slide, 8 Circuits, SPST, SMD, DIP Unsealed, 24 VDC

MASTER:
Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube

Online Components:
Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube

Win Source:
Dip Switch SPST 8 Position Surface Mount Slide Standard Actuator 25mA 24VDC

Electro Sonic:
Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube
