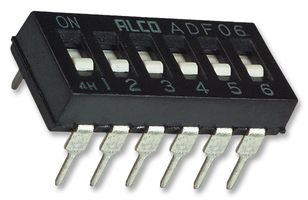

ALCOSWITCH - TE CONNECTIVITY ADF0604 DIP / SIP Switch, Flush Slide, 6Circuits, SPST, Through Hole, AD Series, DIP Unsealed, 24VDC
** ADE and ADF Series DIP Switches**
ADE and ADF series through hole mounting 7.5 x 3.5mm DIP switches with a 2.54mm centerline, gold flash plated contacts and black PPS housings. The ADE series DIP switches have extended slide actuators whilst the ADF series DIP switcheshave flush slide actuators. Both versions of these DIP switches have a high pressure contact system and are auto insertable.
额定电压DC 24 V
额定电流 100 mA
方向 Vertical
触点类型 SPST
电路数 6
针脚数 6
额定电流Max 0.1A @24VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 17.22 mm
宽度 8.38 mm
高度 3.5 mm
引脚间距 2.54 mm
触点材质 Copper Alloy
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509032
