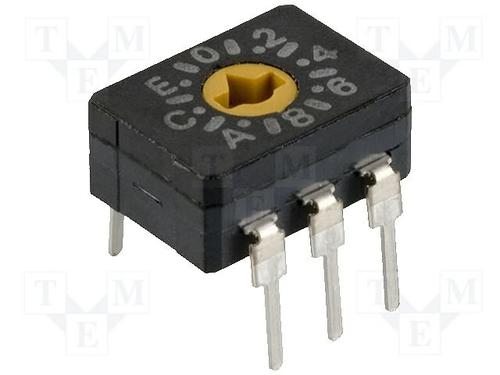

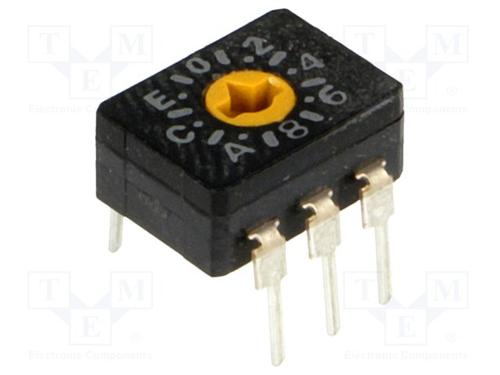

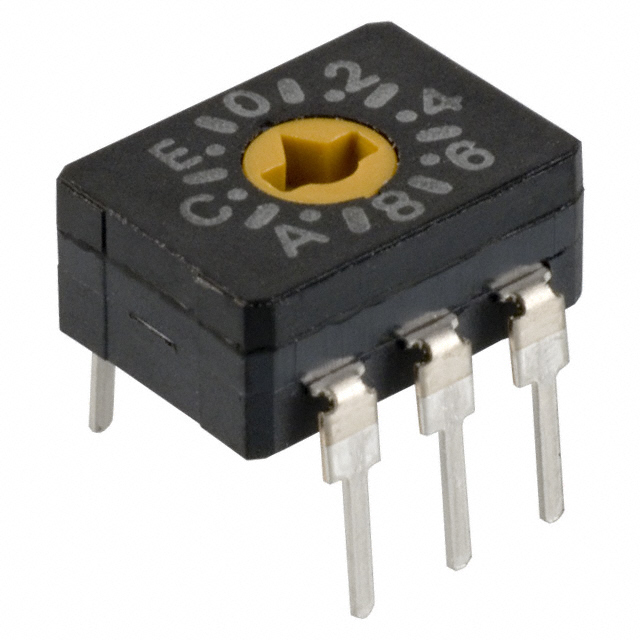

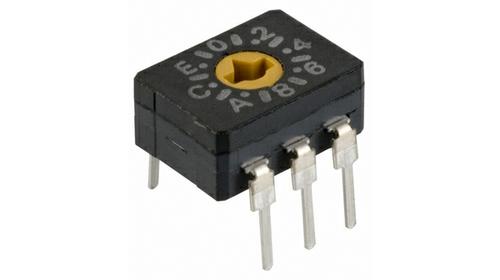

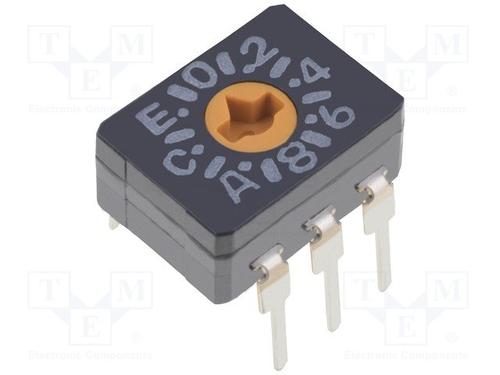

A6C-16RN

OMRON ELECTRONIC COMPONENTS  A6C-16RN  旋转开关, A6C系列, 不发光, 22.5 °, 100 mA, 250 V

DIL 密封旋转 - 薄型

内部密封，防止清洁液和其它污染物进入

薄型 - 4.5mm，用于顶部驱动型

触点额定值：1 至 100mA，5 至 30V 直流

触点电阻：200mΩ

机械寿命：>104 次操作

工作温度：-20 至 +80°C

焊接温度：最高 350°C，时间最长为 3 秒（手动焊接）或者最高 260°C，时间最长为 5 秒（自动焊接）

镀金触点

### 印刷电路板安装

印迹/引脚间距：引脚间距 2.54mm，行距 5.08mm

得捷:
SWITCH ROTARY DIP HEX 100MA 30V

欧时:
16位置 旋转嵌入式 印刷电路板

立创商城:
开关

贸泽:
DIP Switches / SIP Switches BCD HEX TOP ACTUATED

e络盟:
旋转开关, 16路, 1位, 22.5 °, 250 V, A6C系列

艾睿:
Does your printed circuit board need some type of electronic flow control? The A6C-16RN dual in-line package switch, developed by Omron, is the component you need. This device has a maximum current rating of 0.1 A @ 30VDC. It has a SP16T configuration. This DIP switch has an operating temperature range of -20 °C to 70 °C. The A6C-16RN DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. This product is 9 mm long, 4.5 mm tall and 7.62 mm deep. The maximum DC voltage rating is 30 VDC.

Allied Electronics:
16 Way Through Hole DIP Switch, Rotary Flush Actuator

Chip1Stop:
Switch DIP SP16T 16 Flush Screwdriver 0.1A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

TME:
Encoding switch; HEX/BCD; Positions:16; THT; Rcont max:200mΩ

Verical:
Switch DIP N.O./N.C. SP16T 16 Flush Screwdriver 0.1A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Newark:
# OMRON ELECTRONIC COMPONENTS  A6C-16RN  Rotary Switch,STRAIGHT,HEX,ON-ON,Number Of Positions:16,PC TAIL Terminal,ROTARY,PCB Hole Count:6

MASTER:
Switch DIP N.O./N.C. SP16T 16 Flush Screwdriver 0.1A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP N.O./N.C. SP16T 16 Flush Screwdriver 0.1A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube
