ABW411-R

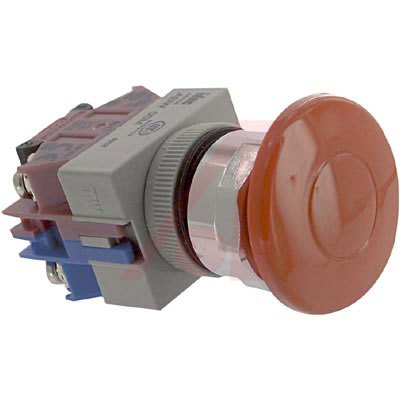

IDEC  ABW411-R  按钮开关

** General Specifications. Contact Ratings:** Single Throw, Double Make/Double Break. Max. Carry Current: 10 A. ** Max. Insulation Voltage:** 600 VAC/VDC. ** Operational Breaking Currents:** AC inductive load — 6 A @ 120 V, 3 A @ 240 V, 1.5 A @ 480 V, 1.2 A @ 600 V; DC resistive load — 4 A @ 24 V, 2 A @ 120 V, 1.1 A @ 240 V. ** Termination:** M3.5 screw terminal. ** Degree of Protection:** NEMA 4X/IP65. ** Mechanical Life. Momentary Pushbuttons:** 5,000,000 operations. ** All others:** 500,000 operations. ** Electrical Life:** 500,000 operations at max. rated load. ** LED Lamp Ratings:** 24 VAC/VDC @ 10 mA, 120 VAC @ 10 mA.

* Assembled Control Units Are UL Listed, CSA Certified and CE marked.
