ACPL-M51L-000E

Optocoupler DC-IN 1CH Transistor With Base DC-OUT 5Pin SO T/R

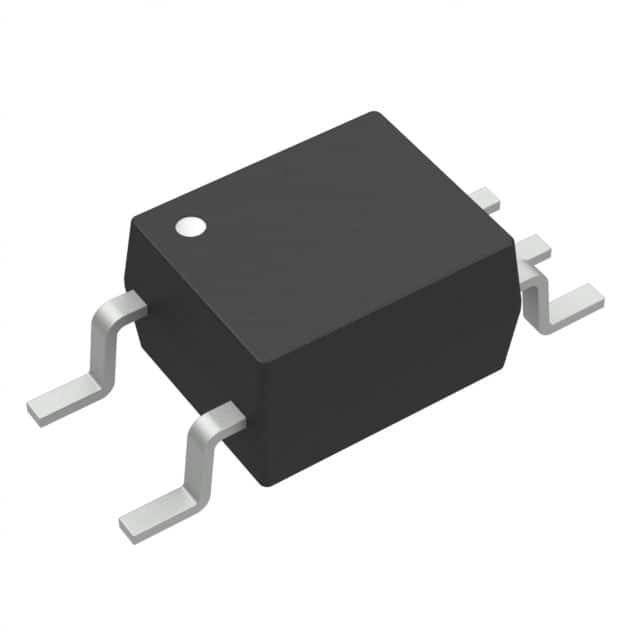

The ACPL-M51L single-channel, SO-5 package is a low power, low supply voltage 1Mbd digital optocoupler, configurable as a 4-pin device.

The ACPL-M51L uses an insulating layer between the light emitting diode and an integrated photon detector to provide electrical insulation between the input and output.

The ACPL-M51L has an increased common mode transient immunity of 15,000 V/µs minimum at VCM = 1,500 V over a temperature range of -40°C to +105°C. The current transfer ratio CTR is 140% typical at IF = 3 mA. This digital optocoupler can be used in any  TTL/CMOS, TTL/LSTTL or other analog applications.

### Features

.

Wide Supply Voltage VCC: 2.25 to 24 V

.

Low Drive Current: 3 mA min

.

Open-Collector Output

.

TTL Compatible

.

Compact SO-5 Package

.

15kV/µs High Common-Mode Rejection at VCM = 1500 V

.

Current Transfer Ratio CTR: 140% typical

.

Operating Temperature: -40 °C to +105 °C

.

Low Propagation Delay: 1 µs max at 2.5 V and 5 V standard config

.

Low Logic Output Voltage of 0.2 V max 4-pin configuration

.

Worldwide Safety Approval:

.

UL 1577 Recognized: 3,750 Vrms for 1 minute

.

CSA Approved

.

IEC 60747-5-5 Approved VIORM = 567 VPEAK

.

Available Options:

.

500 = Tape & Reel Packaging Option

.

XXXE = Lead Free Option
