A6R161RS

DIP Switches / SIP Switches Rotary Dip Switch

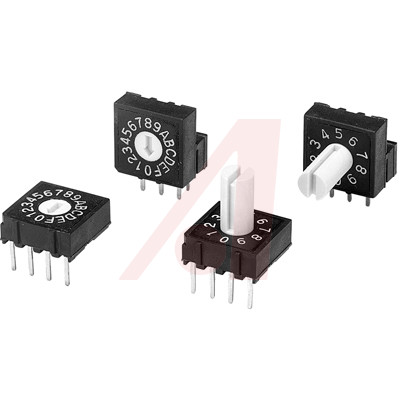

16 Positions Rotary DIP Switch, PCB Mounting, Contact Resistance 200 Milliohms

* RoHS compliant

* Series includes top-actuated, side-actuated, flat, and extended-shaft models

* The rotor has an O-ring sealed construction that prevents the ingress of dirt and dust

* Two different types of terminal arrangements are available for each mode

* O-Ring Sealed Construction That Prevents the Ingress of Dirt and Dust

* Rating: 25 mA @ 24 VDC

* Insulation Resistance: 100 M @ 250 VDC

* Operating Temperature: -25° to +80°C
