AN-1304-G

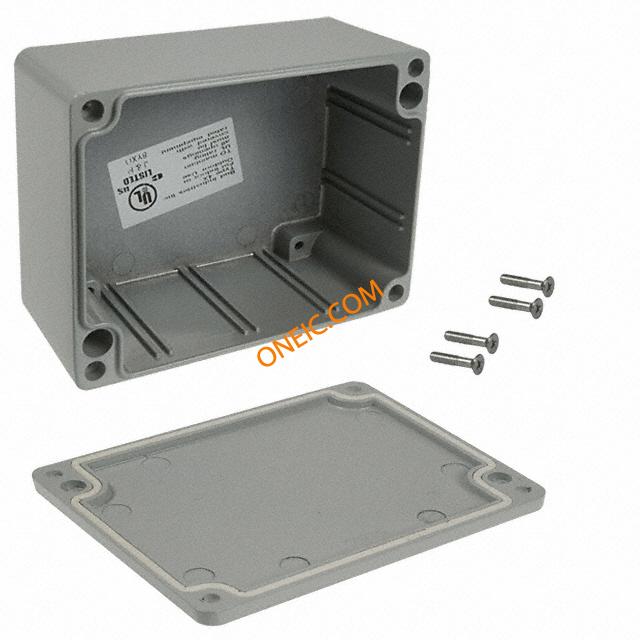

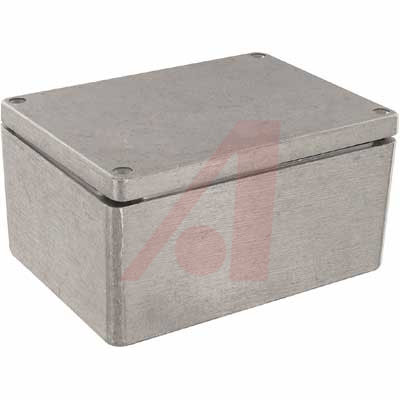

Gray Aluminum Alloy Wall Mount Die Cast Aluminum Enclosure

Aluminum Alloy Body Enclosures

Die-Cast aluminum and resistant to atmospheric and marine corrosion, these enclosures are ideal for housing sensitive electronic assemblies and pneumatic, hydraulic and electrical devices in both commercial and industrial environments. Specifications. Body and Cover: Aluminum alloy #A380. Finish: Natural finish or gray. GASKET: Sponge Silicone. 4 M-4 stainless steel, non-magnetic cover screws included. Optional PCB mounting kit available. Copper plated ground screw and washer are available, please contact your local Allied sales representative.

* Designed to IP 65 of IEC 529, UL 5084 and NEMA 1, 2, 4, 4X, 12 and 13

* Cover Attaching Screws Are Outside the Sealing Area thus preventing Ingress of Moisture and Dust

* Cover Incorporates a Recessed Silicone Sponge Gasket

* Internal Guide Slots for Mounting PCB Assemblies Vertically

* Internal Bosses for Mounting PCBs Horizontally or for Connecting Terminals, Ground, Etc.

* Screw Holes for Cover Mounting Are Roll Threaded and Screws Are Captivated and Recessed
