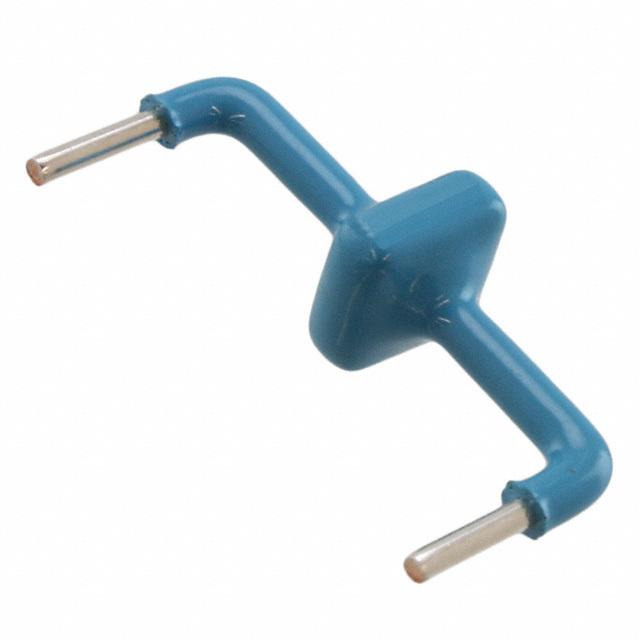

AK3-030C图片1

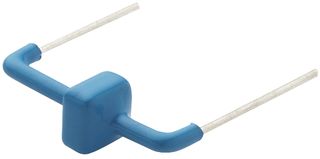

AK3-030C图片2
AK3-030C图片3
AK3-030C图片4
AK3-030C图片5
AK3-030C图片6
AK3-030C图片7
AK3-030C概述

LITTELFUSE AK3-030C TVS Diode, AK3 Series, Bidirectional, 30V, 90V, Axial Leaded, 2Pins

Protect your electronic equipment from sudden or momentary overvoltage conditions with this TVS diode from . Its test current is 10 mA. Its maximum leakage current is 10 μA. This device"s maximum clamping voltage is 90 V and minimum breakdown voltage is 32 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product comes packaged in bulk, so the parts will be stored loosely.

AK3-030C中文资料参数规格
技术参数

电路数 1

钳位电压 90 V

测试电流 10 mA

最大反向击穿电压 37 V

最小反向击穿电压 32 V

击穿电压 32 V

工作温度Max 125 ℃

工作温度Min -55 ℃

工作结温 -55℃ ~ 125℃

封装参数

安装方式 Through Hole

引脚数 2

封装 Axial, Right Angle Bend 24.15mm Center

外形尺寸

长度 17 mm

宽度 24.15 mm

封装 Axial, Right Angle Bend 24.15mm Center

物理参数

工作温度 -55℃ ~ 125℃ TJ

其他

产品生命周期 Active

包装方式 Bulk

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买AK3-030C
型号: AK3-030C
描述:LITTELFUSE AK3-030C TVS Diode, AK3 Series, Bidirectional, 30V, 90V, Axial Leaded, 2Pins
