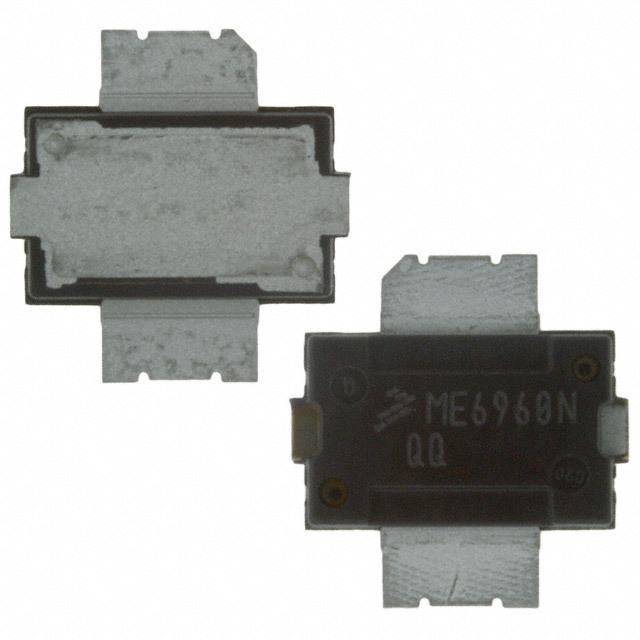

晶体管, 射频FET, 40 VDC, 294 W, 136 MHz, 520 MHz, TO-270
* Characterized for Operation from 136 to 520 MHz * Unmatched Input and Output Allowing Wide Frequency Range Utilization * Integrated ESD Protection * Integrated Stability Enhancements * Wideband — Full Power Across the Band: * 136--174 MHz * 380--450 MHz * 450--520 MHz * 225°C Capable Plastic Package * Exceptional Thermal Performance * High Linearity for: TETRA, SSB, LTE * Cost--effective Over--molded Plastic Packaging * In Tape and Reel. R1 Suffix = 500 Units, 24 mm Tape Width, 13 inch Reel.
得捷:
FET RF 40V 520MHZ TO-270-2
立创商城:
AFT05MS031NR1
艾睿:
Trans RF MOSFET N-CH 40V 3-Pin TO-270 T/R
安富利:
Trans MOSFET N-CH 40V 2-Pin TO-270 T/R
Verical:
Trans RF MOSFET N-CH 40V 3-Pin TO-270 T/R
Newark:
# NXP AFT05MS031NR1 RF FET Transistor, 40 VDC, 31 W, 136 MHz, 520 MHz, TO-270
RfMW:
RF Power Transistor, 0.0018 to 0.52 GHz, 31 W, 17.7 dB, 13.6 V, SOT1732, LDMOS
Win Source:
FET RF 40V 520MHZ TO-270-2 / RF Mosfet LDMOS 13.6 V 10 mA 520MHz 17.7dB 31W TO-270-2
频率 520 MHz
无卤素状态 Halogen Free
针脚数 2
耗散功率 31 W
输出功率 31 W
增益 17.7 dB
测试电流 10 mA
输入电容Ciss 109pF @13.6VVds
工作温度Max 225 ℃
工作温度Min -65 ℃
耗散功率Max 294000 mW
额定电压 40 V
电源电压 13.6 V
安装方式 Surface Mount
引脚数 2
封装 TO-270-2
封装 TO-270-2
工作温度 -40℃ ~ 225℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
