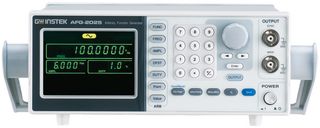

GW INSTEK AFG-2025 信号发生器, 任意/功能, 25MHZ
The is a 25MHz Arbitrary Waveform Function Generator allows user to set waveform parameters, including waveform type, frequency, amplitude, DC offset, modulation type and duty cycle, through keypad entry and/or the knob selection and display the set parameters on the 3.5-inch LCD screen. The AFG-2100/2000 series arbitrary function generator is a DDS Direct Digital Synthesized based signal generator designed to accommodate the educational and basic industrial requirements for an accurate and affordable signal source covering the output of sine, square pulse, ramp triangle, noise and arbitrary waveforms. The 20MSa/s sampling rate, 10-bit vertical resolution and 4k point memory of this series provides user with a flexible environment for creating the specific waveform output as needed.
- .
- Sine, square, triangular, noise and arbitrary waveform
- .
- 20MSa/s Sampling rate, 10-bit vertical resolution and 4k point memory for arbitrary waveform
- .
- 1 to 99% Adjustable duty cycle for square waveform
- .
- Waveform parameter setting through numeric keypad entry and knob selection
- .
- Amplitude, DC offset and other key setting information shown on the 3.5" LCD screen simultaneously
- .
- USB device interface for remote control and waveform editing
- .
- PC arbitrary waveform editing software
- .
- AM/FM/FSK modulation, sweep and frequency counter
