TEXAS INSTRUMENTS ADC14L020CIVY 受限产品, 芯片, 模数转换器, 14位, 20 MSPS, 150mW, POWERWISE
The is a monolithic CMOS Analog-to-digital Converter ADC capable of converting analog input signals into 14-bit digital words at 20MSPS. This low power converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption while providing excellent dynamic performance and a 150MHz full power bandwidth. Operating on a single 3.3V power supply, the ADC achieves 12 effective bits at Nyquist and consumes just 150mW at 20MSPS. The Power Down feature reduces power consumption to 15mW. The differential inputs provide a full scale differential input swing equal to 2 times VREF with the possibility of a single-ended input. Full use of the differential input is recommended for optimum performance. Duty cycle stabilization and output data format are selectable using a quad state function pin. The output data can be set for offset binary or twos complement.
供电电流 41.0 mA
电路数 1
通道数 1
针脚数 32
位数 14
采样率 20.0 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 2.4 V
安装方式 Surface Mount
引脚数 32

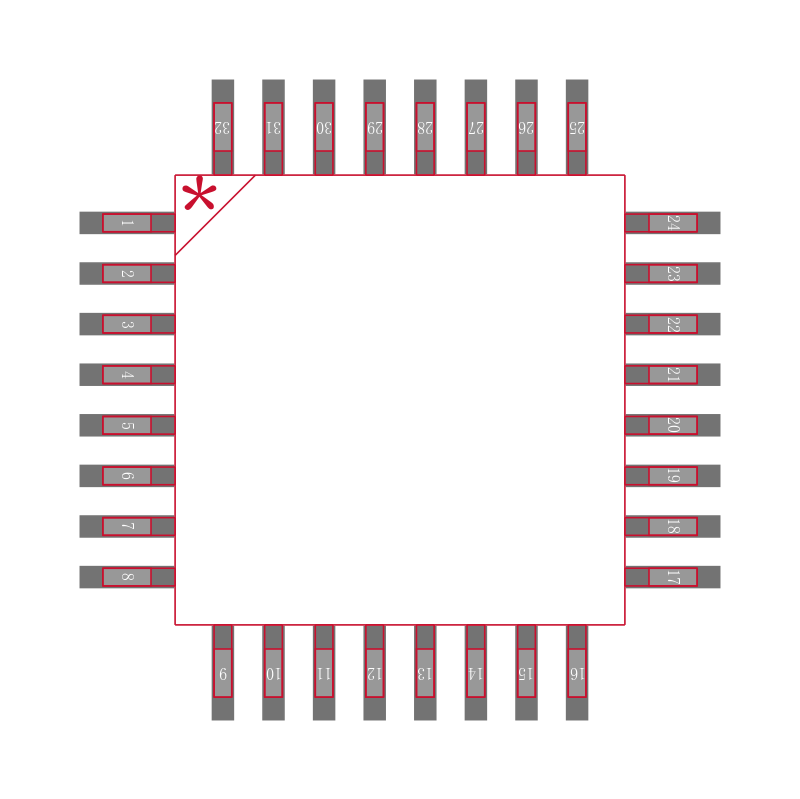

封装 LQFP-32
封装 LQFP-32
产品生命周期 Active
包装方式 Tray
制造应用 视频和目视, 通信与网络, 医用, 传感与仪器, 成像
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADC14L020CIVY TI 德州仪器 | 当前型号 | 当前型号 |
ADC14L020CIVY/NOPB 德州仪器 | 类似代替 | ADC14L020CIVY和ADC14L020CIVY/NOPB的区别 |
THS1215CPW 德州仪器 | 功能相似 | ADC14L020CIVY和THS1215CPW的区别 |
THS1215CDW 德州仪器 | 功能相似 | ADC14L020CIVY和THS1215CDW的区别 |
