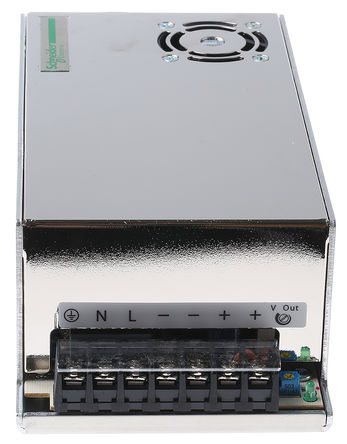

ABL1REM24100图片1

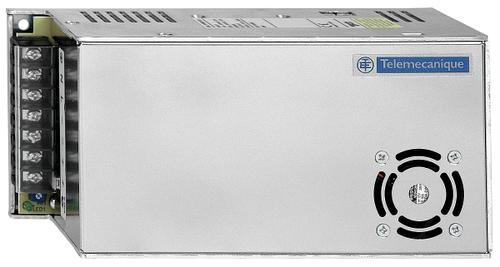

ABL1REM24100图片2
ABL1REM24100图片3

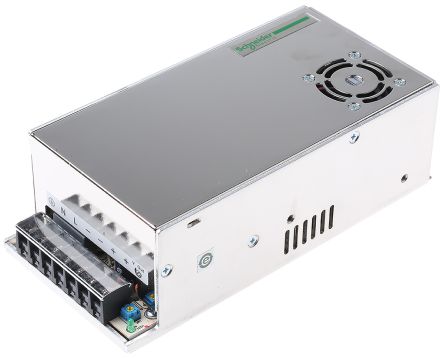

ABL1REM24100图片4
ABL1REM24100图片5
ABL1REM24100图片6
ABL1REM24100图片7
ABL1REM24100图片8
ABL1REM24100概述

ABL1REM Series Power SupplyABL1 regulated switch mode power supplies are designed to provide the dc voltage necessary for simple, dedicated control circuits. Divided into two families, these power supplies are able to meet all the needs encountered in standard commercial machines. ABL1 regulated switch mode power supplies are totally electronic and regulatedProducts with anti-harmonic distortion input filtering A high degree of output voltage stability, adjustable by potentiometer Built-in thermal overload and short-circuit protection Conformity to world-wide standards Conformity to standard EN 55022 class B ### 开关模式 - Schneider Electric

Designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness.

Applications: Lifts, display panels, escalators, carwash, foodstuff ovens, etc.

* Input voltage: single-phase 100-240 V

* Output voltage: regulated single-phase 12 and 24 VDC / 60-240 W

* Optional anti-harmonics filter conforming to standards IEC/EN 61000-3-2

* Thermal protection incorporated on the entire range

* Connection terminal block protection

* UL CSA certification

* Protection against overloads, short-circuits and overvoltages

* Fixing by screw or on 35 mm rail as option

ABL1REM24100中文资料参数规格
技术参数

额定功率 240 W

输出接口数 1

输出电压 24 VDC

输出电流 10 A

输出功率 240 W

输入电压Max 264 VAC

输入电压Min 170 VAC

输出电压Max 26.4 VDC

输出电压Min 21.6 VDC

封装参数

安装方式 Panel

物理参数

重量 880 g

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买ABL1REM24100
型号: ABL1REM24100
制造商: Schneider Electric 施耐德
描述:ABL1REM Series Power Supply ABL1 regulated switch mode power supplies are designed to provide the dc voltage necessary for simple, dedicated control circuits. Divided into two families, these power supplies are able to meet all the needs encountered in standard commercial machines. ABL1 regulated switch mode power supplies are totally electronic and regulated Products with anti-harmonic distortion input filtering A high degree of output voltage stability, adjustable by potentiometer Built-in thermal overload and short-circuit protection Conformity to world-wide standards Conformity to standard EN 55022 class B ### 开关模式 - Schneider Electric
