A24N24BLP

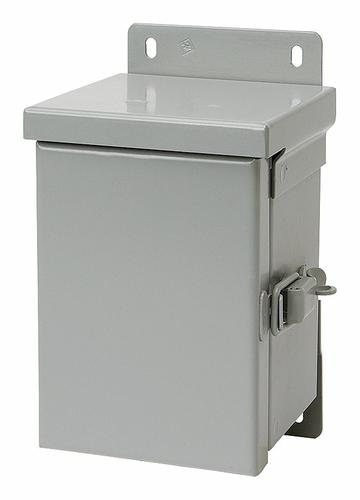

HOFFMAN ENCLOSURES A24N24BLP Metallic Enclosure, IP30, NEMA 1, Wall Mount, 610mm, 610mm, 219mm, Steel, Grey

**Applications:**

These enclosures have a size range of 16" × 12" × 6" to 36" × 30" × 12" and meet basic functionality requirements for applications that do not require oil- or dust-tight enclosures.

**Features:**

* Doors Have Butt Hinges

* Collar Studs Provided for Mounting Optional Panel

* Slotted Flush Latch; Optional Latch Available

* Mounting Holes on Back of Enclosure

**Specifications:**

* 14- or 12-Gauge Steel

**Finish:**

ANSI 61 gray polyester powder paint finish inside and out over pretreated surfaces. Optional solid panels are white and optional perforated panels are gray.

**Industry Standards:**

* UL 50, 50E Listed; Type 1; File No. E27567

* cUL Listed per CSA C22.2 No. 40; Type 1; File No. E27567

* NEMA/EEMAC Type 1

* CSA, File 42184; Type 1

* IEC 60529, IP 30
