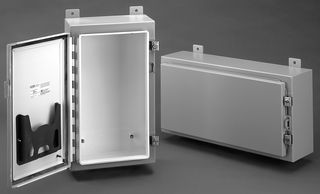

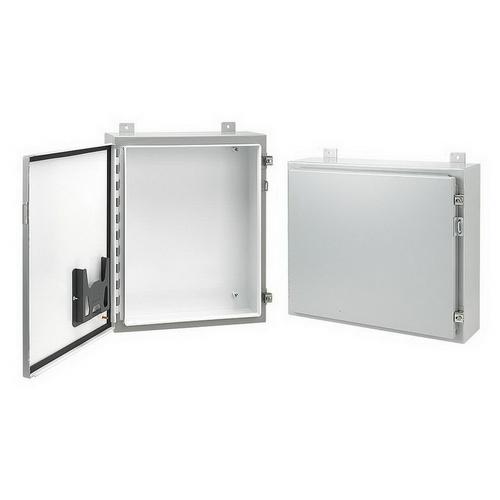

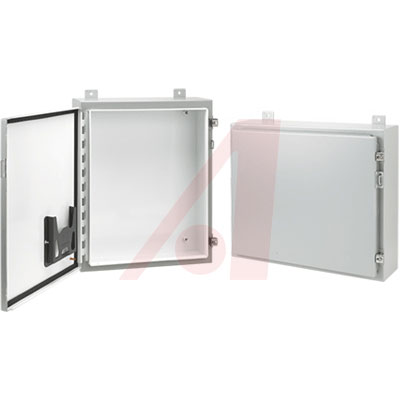

HOFFMAN ENCLOSURES A302410LP Metallic Enclosure, IP65, NEMA 13, Wall Mount, Steel, IP65, NEMA 13, 762mm, 610mm
For applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure.
**Specifications:
**
* Enclosure Bodies Are 14- or 16-Gauge Steel and Doors Are 14-Gauge Steel**
**
* Seams Continuously Welded and Ground Smooth**
**
* External Wall-Mounting Brackets**
**
* Formed External Return Flanges Around All Sides of Enclosure Opening**
**
* Screw-Down Door Clamps**
**
* Removable Heavy-Gauge Continuous Hinge Pin**
**
* Hasp and Staple for Padlocking**
**
* Data Pocket is High-Impact Thermoplastic**
**
* Collar Studs Provided for Mounting Optional Panels**
**
* Bonding Provision on Door**
**
* White Inside with ANSI 61 Gray Finish Outside**
**
**Industry Standards:
**
* UL 508A Listed; Type 12, 13; File No. E61997**
**
* cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997**
**
* NEMA/EEMAC Type 12 and 13**
**
* CSA, File No. 42186: Type 12**
**
* IEC 60529, IP65
