ACD-51NAV概述

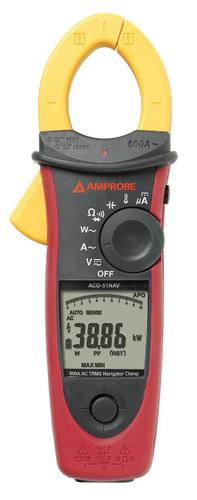

Amprobe ACD-51NAV 1000V/600A TRMS AC Navigator Clamp Meter with Temperature, THD and NCV Detector

**Navigator Clamps Series

**It"s all about easy and reliable measurements. "s new line of NavigatorSM clamp meters feature quick, easy to use single hand selection of measurements. The joy stick control allows quick selection of measurement features on the display from MAX/MIN to power factor to AC/DC, with many more available. Simply highlight the desired measurement feature using the joy stick, press to select. Rugged and CATIV reliable, these units also feature overmold body to absorb shock, super bright backlight display and built-in jaw flashlight, all you need for commercial and industrial environments.

* True RMS

* Measurements: Voltage up to 1000V AC/DC, Resistance, Frequency, THD Total Harmonics Distortion and Individual Harmonics form 1 to 25, Power, Power Factor

* Phase Rotation Indication

* Non-contact voltage detection

* Inrush Current measurement for motors

* Low Pass Filter for variable frequency drives

* Continuity Beeper

* Min, Max and Smart Data Hold

* Peak Hold

* Auto torch-light when clamping

* Large 1000 count display with active backlight and analog Bar graph

* Auto Power Off

* 4 feet Drop Proof

* Deluxe Carrying Case Included

* CAT IV 600V /CAT III 1000V Safety Standard

ACD-51NAV中文资料参数规格
技术参数

频率 20Hz ~ 10kHz

精度 ±1.5 %

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买ACD-51NAV
型号: ACD-51NAV
制造商: Amprobe
描述:Amprobe ACD-51NAV 1000V/600A TRMS AC Navigator Clamp Meter with Temperature, THD and NCV Detector
