ATV312HU75M3

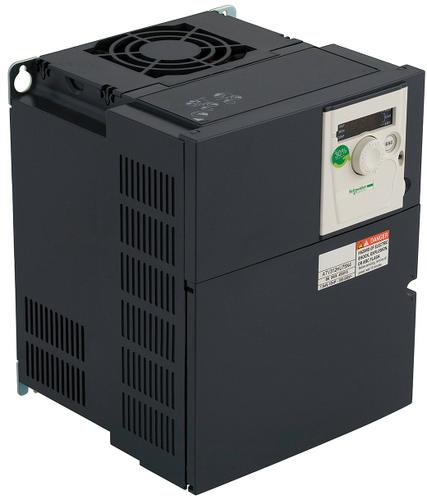

ATV312HU75M3图片1

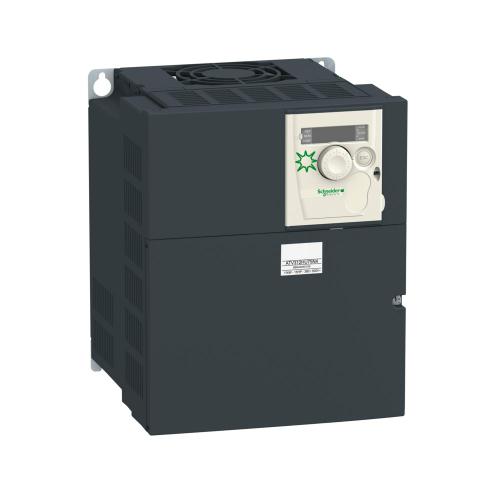

ATV312HU75M3图片2

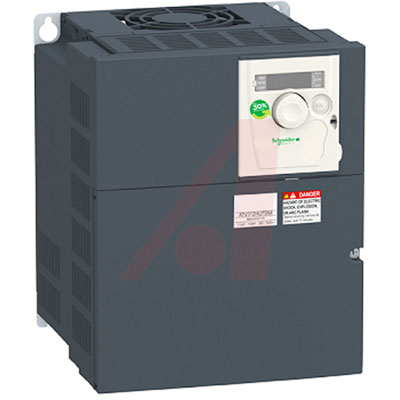

ATV312HU75M3图片3
ATV312HU75M3图片4
ATV312HU75M3概述

SCHNEIDER ELECTRIC ATV312HU75M3 Variable Speed Drive, Altivar 312 Series, Modbus, CANopen, Three Phase, 7.5kW, 208 to 240VAC

Ideally suited to the needs of Material Handling, Packaging, Food, Beverage, Pump, Fan and other OEM machines, the Altivar 312 Variable Frequency Drive offers the highest overtorque and is the only drive in its class with a remote graphical keypad. The Altivar 312 Drive redefines the concept of “ease of use” by integrating the best-in-class features from the entire family of Altivar Drives into its user interface. This starts with an intuitive rotary wheel for navigation and adjustments, as well as large control buttons on the face of the drive, protected by a snap-lock seal. You can also use advanced features such as the same graphical keypad used with the Altivar 61 and 71 drives, the new LED display of the Altivar 12 drive or even Bluetooth wireless technology and your mobile phone.

**Features:**

* All the Advantages of Altivar 31 Drive

* Excellent Resistance to Harsh Environments 50° C

* Coated Cards as Standard IEC 60721-3-3 Classes 3c2 and 3s2

* Excellent Resistance to Power Supply and Motor Interference

* 0.25 HP to 20 HP

* Single-Phase 200 V to 240 V, Three-Phase 200 V to 240 V, Three-Phase 380 V to 500 V, Three-Phase 525 V to 600 V

* Integrated Class 2 Emc Filter for Radiated and Conducted Emissions

* Din Rail Mounting

ATV312HU75M3中文资料参数规格
技术参数

额定电流 33 A

额定功率 7.5 kW

输出电压 ≤240 V

输出电流 33.0 A

输出电压Max 240 V

额定电压 230 V

电源电压 240 V

电源电压Max 240 VAC

电源电压Min 208 VAC

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买ATV312HU75M3
型号: ATV312HU75M3
描述:SCHNEIDER ELECTRIC ATV312HU75M3 Variable Speed Drive, Altivar 312 Series, Modbus, CANopen, Three Phase, 7.5kW, 208 to 240VAC
