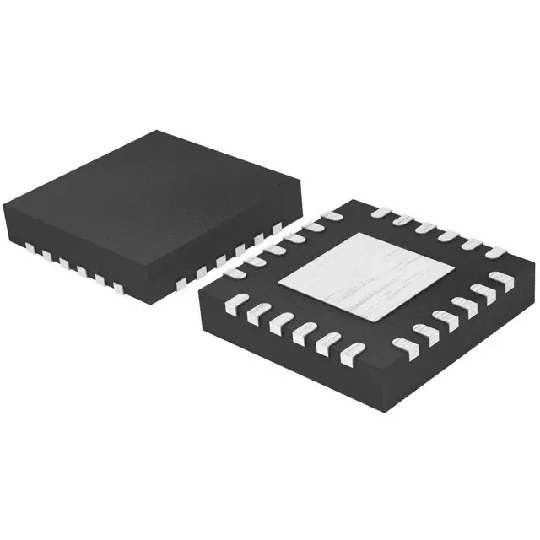

ADL5380ACPZ-R7图片1
ADL5380ACPZ-R7图片2
ADL5380ACPZ-R7图片3
ADL5380ACPZ-R7图片4
ADL5380ACPZ-R7图片5
ADL5380ACPZ-R7图片6
ADL5380ACPZ-R7图片7
ADL5380ACPZ-R7图片8
ADL5380ACPZ-R7图片9
ADL5380ACPZ-R7图片10
ADL5380ACPZ-R7图片11
ADL5380ACPZ-R7图片12
ADL5380ACPZ-R7图片13
ADL5380ACPZ-R7图片14
ADL5380ACPZ-R7概述

ANALOG DEVICES  ADL5380ACPZ-R7.  芯片, 射频解调器, 400MHZ 至 6GHZ, LFCSP-24

Product Details

The ADL5380 is a broadband quadrature I-Q demodulator that covers an RF/IF input frequency range from 400 MHz to 6 GHz. With a NF = 10.9 dB, IP1dB = 11.6 dBm, and IIP3 = 29.7 dBm @ 900 MHz, the ADL5380 demodulator offers outstanding dynamic range suitable for the demanding infrastructure direct-conversion requirements. The differential RF inputs provide a well-behaved broadband input impedance of 50 Ω and are best driven from a 1:1 balun for optimum performance.

Excellent demodulation accuracy is achieved with amplitude and phase balances of ~0.07 dB and ~0.2°, respectively. The demodulated in-phase I and quadrature Q differential outputs are fully buffered and provide a voltage conversion gain of ~7 dB. The buffered baseband outputs are capable of driving a 2 V p-p differential signal into 200 Ω.

The fully balanced design minimizes effects from second-order distortion. The leakage from the LO port to the RF port is <−50 dBm. Differential dc offsets at the I and Q outputs are typically <20 mV. Both of these factors contribute to the excellent IIP2 specification, which is >65 dBm.

The ADL5380 operates off a single 4.75 V to 5.25 V supply. The supply current is adjustable by placing an external resistor from the ADJ pin to either the positive supply, VS, to increase supply current and improve IIP3 or to ground which decreases supply current at the expense of IIP3.

The ADL5380 is fabricated using the Analog Devices, Inc., advanced silicon-germanium bipolar process and is available in a 24-lead exposed paddle LFCSP.

**Applications**

* Cellular W-CDMA/GSM/LTE

* Microwave point-to-multipoint radios

* Broadband wireless and WiMAX

### Features and Benefits

.
Operating RF and LO frequency: 400 MHz to

6 GHz

.
Input IP3

30 dBm @ 900 MHz

28 dBm @1900 MHz

.
Input IP2: >65 dBm @ 900 MHz
.
Input P1dB IP1dB: 11.6 dBm @ 900 MHz
.
Voltage conversion gain: ~7 dB
.
Demodulation bandwidth: ~390 MHz
.
Noise figure NF

10.9 dB @ 900 MHz

11.7 dB @ 1900 MHz

.
Quadrature demodulation accuracy @

900 MHz

Phase accuracy: ~0.2°

Amplitude balance: ~0.07 dB

.
Baseband I/Q drive: 2 V p-p into 200 Ω
.
Single 5 V supply
ADL5380ACPZ-R7中文资料参数规格
技术参数

电源电压DC 4.75V min

供电电流 245 mA

针脚数 24

耗散功率 1370 mW

增益 6.9 dB

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1370 mW

电源电压 4.75V ~ 5.25V

电源电压Max 5.25 V

电源电压Min 4.75 V

封装参数

安装方式 Surface Mount

引脚数 24

封装 LFCSP-24

外形尺寸

宽度 3.75 mm

封装 LFCSP-24

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 5A991.b

数据手册

ADL5380ACPZ-R7引脚图与封装图
ADL5380ACPZ-R7引脚图
ADL5380ACPZ-R7封装图
ADL5380ACPZ-R7电路图
ADL5380ACPZ-R7封装焊盘图
