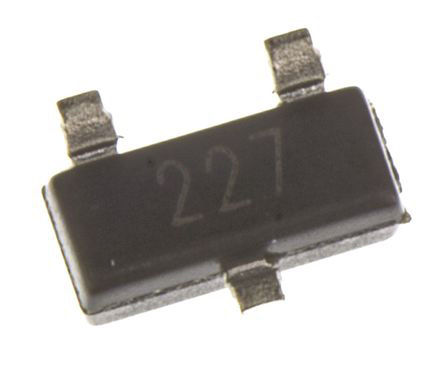

ANALOG DEVICES ADR5040ARTZ-REEL7 电压基准, 精准微功率, 分流 - 固定, ADR5040系列, 2.048V, SOT-23-3
参考电压,高达 2.048V,Analog Devices
### 电压参考,Analog Devices
精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑,并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。
得捷:
IC VREF SHUNT 0.2% SOT23-3
立创商城:
2.048V 15mA
欧时:
Analog Devices ADR5040ARTZ-REEL7 Fixed 2.048V 电压参考, Maximum of 2.04 V输出, ±0.2 %精确度, 3引脚
贸泽:
Voltage References Prec Micropwr Shunt Mode 2.048 Vout
艾睿:
Even in the event of large power supply variations, this ADR5040ARTZ-REEL7 voltage reference power management device from Analog Devices can produce and maintain a precise DC voltage. With an output that has a voltage of 2.048 V, this is power management at its best. It has an initial accuracy of 0.2%. This voltage reference circuit supports shunt topology. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It runs with a maximum temperature coefficient of 100ppm/°C. This voltage reference circuit has an operating temperature range of -40 °C to 125 °C.
Chip1Stop:
V-Ref Precision 2.048V 15mA 3-Pin SOT-23 T/R
Verical:
V-Ref Precision 2.048V 15mA 3-Pin SOT-23 T/R
Newark:
# ANALOG DEVICES ADR5040ARTZ-REEL7 Voltage Reference, Precision Micropower, Shunt - Fixed, ADR5040 Series, 2.048V, SOT-23-3
DeviceMart:
IC VREF SHUNT PREC 2.048V SOT23
Win Source:
Shunt Voltage Reference IC ±0.2% 15mA TO-236-3, SC-59, SOT-23-3
容差 ±0.2 %
输出电压 2.048 V
输出电流 15 mA
通道数 1
针脚数 3
输出电压Max 2.04 V
输出电压Min 2.048 V
输出电流Max 15 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.2 %
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃ TA
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADR5040ARTZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADR5040ARTZ 亚德诺 | 完全替代 | ADR5040ARTZ-REEL7和ADR5040ARTZ的区别 |
ADR5040ARTZ-REEL 亚德诺 | 完全替代 | ADR5040ARTZ-REEL7和ADR5040ARTZ-REEL的区别 |
ADR5040ARTZ-R2 亚德诺 | 类似代替 | ADR5040ARTZ-REEL7和ADR5040ARTZ-R2的区别 |
