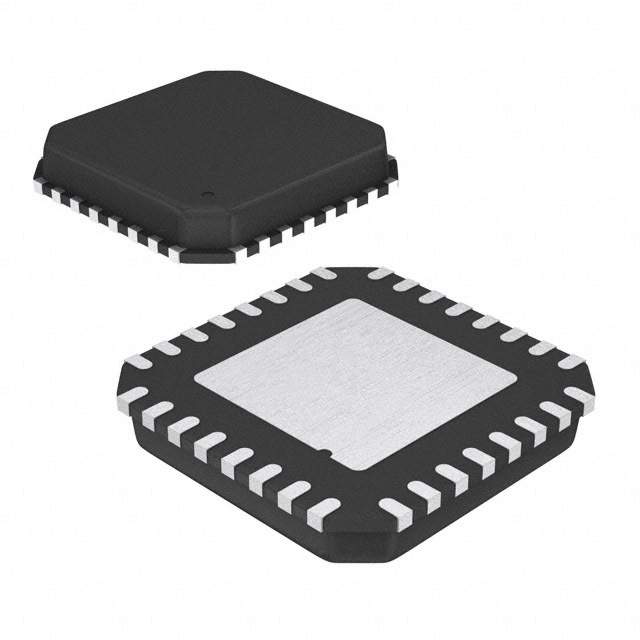

AD9744ACPZ

ANALOG DEVICES  AD9744ACPZ  数模转换器, 14 bit, 210 MSPS, 并行, 2.7V 至 3.6V, LFCSP, 32 引脚

模数转换器 14 位，Analog Devices

Analog Devices 的此系列的数字到模拟转换器 DAC 具有 14 位分辨率。 Analog Devices 的 14 位 DAC 特别适用于需要坚固设计解决方案的工业环境。 它们可提供高性能，以及准确可靠的转换。

### 数字到模拟转换器 - Analog Devices

得捷:
IC DAC 14BIT A-OUT 32LFCSP

立创商城:
AD9744ACPZ

欧时:
模数转换器 14 位，Analog DevicesAnalog Devices 的此系列的数字到模拟转换器 DAC 具有 14 位分辨率。 Analog Devices 的 14 位 DAC 特别适用于需要坚固设计解决方案的工业环境。 它们可提供高性能，以及准确可靠的转换。 ### 数字到模拟转换器 - Analog Devices

艾睿:
DAC 1-CH Segment 14-bit 32-Pin LFCSP EP Tray

安富利:
The AD97441 is a 14-bit resolution, wideband, third generation member of the TxDAC series of high performance, low power CMOS digital-to-analog converters DACs. The TxDAC family, consisting of pin-compatible 8-, 10-, 12-, and 14-bit DACs, is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD9744 offers exceptional ac and dc performance while supporting update rates up to 210 MSPS. The AD9744’s low power dissipation makes it well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 60 mW with a slight degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 15 mW. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance. Edge-triggered input latches and a 1.2 V temperature compensated band gap reference have been integrated to provide a complete monolithic DAC solution. The digital inputs support 3 V CMOS logic families.

Chip1Stop:
パラレル DAC 1-CH 14-bit 32-Pin LFCSP EP Tray

Verical:
DAC 1-CH Segment 14-bit 32-Pin LFCSP EP Tray

Newark:
# ANALOG DEVICES  AD9744ACPZ  Digital to Analog Converter, 14 bit, 210 MSPS, Parallel, 2.7V to 3.6V, LFCSP, 32 Pins

罗切斯特:
D/A Converter, Parallel, Word Input Loading, 0.011us Settling Time

DeviceMart:
IC DAC 14BIT 210MSPS 32-LFCSP

Win Source:
IC DAC 14BIT 210MSPS 32-LFCSP
