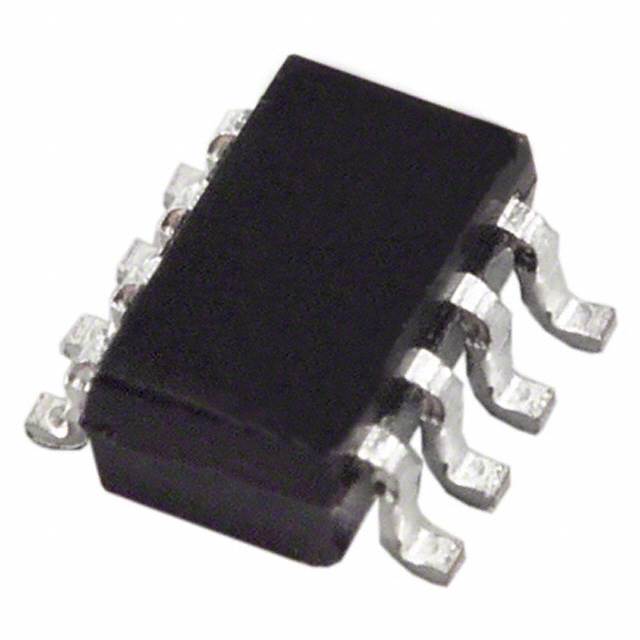

AD5061BRJZ-2REEL7图片1
AD5061BRJZ-2REEL7图片2
AD5061BRJZ-2REEL7图片3
AD5061BRJZ-2REEL7图片4
AD5061BRJZ-2REEL7图片5
AD5061BRJZ-2REEL7图片6
AD5061BRJZ-2REEL7图片7
AD5061BRJZ-2REEL7图片8
AD5061BRJZ-2REEL7概述

ANALOG DEVICES  AD5061BRJZ-2REEL7  芯片, 数模转换器, 16位, 1.3MSPS, SOT-23-8

Product Details

The AD5061, a member of the Analog Devices, Inc., _nano_DAC™ family, is a low power, single 16-bit buffered voltage-out DAC that operates from a single 2.7 V to 5.5 V supply. The part offers a relative accuracy specification of ±4 LSB and operation is guaranteed monotonic with a ±1 LSB DNL specification. The part uses a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI® QSPI™, MICROWIRE™ and DSP interface standards. The reference for the AD5061 is supplied from an external VREF pin. A reference buffer is also provided on-chip. The part incorporates a power-on reset circuit that ensures the DAC output powers up to mid scale or zero scale and remains there until a valid write takes place to the device. The part contains a power-down feature that reduces the current consumption of the device to typically 330 nA at 5 V and provides software-selectable output loads while in power-down mode. The part is put into power-down mode over the serial interface. Total unadjusted error for the part is <3 mV. This part exhibits very low glitch on power-up.

**Product Highlights**

1. Available in a small 8-lead SOT-23 package.

2. 16-bit resolution 4 LSB INL.

3. Low glitch on power-up.

4. High speed serial interface with clock speeds up to 30 MHz.

5. Three power down modes available to the user.

6. Reset to known output voltage midscale to zero scale.

**Applications**

.
Process Control
.
Data Acquisition Systems
.
Portable Battery-Powered Instruments
.
Digital Gain and Offset Adjustment
.
Programmable Voltage and Current Sources
.
Programmable Attenuators

### Features and Benefits

.
Single 16-bit DAC, 4 LSB INL
.
Power-on reset to midscale or zero-scale
.
Guaranteed monotonic by design
.
3 power-down functions
.
Low power serial interface with Schmitt-triggered inputs
.
Small 8-lead SOT-23 package, low power
.
Fast settling time of 4 μs typically
.
2.7 V to 5.5 V power supply
.
Low glitch on power-up
.
SYNC interrupt facility
AD5061BRJZ-2REEL7中文资料参数规格
技术参数

输出接口数 1

通道数 1

针脚数 8

位数 16

耗散功率 5.00 mW

采样率 1.3 Msps

分辨率Bits 16.0

工作温度Max 85 ℃

工作温度Min -40 ℃

数模转换数DAC 1

电源电压 2.7V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOT-23-8

外形尺寸

封装 SOT-23-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 通信与网络

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

军工级 No

REACH SVHC版本 2015/12/17

数据手册

AD5061BRJZ-2REEL7引脚图与封装图
AD5061BRJZ-2REEL7引脚图
AD5061BRJZ-2REEL7封装图
AD5061BRJZ-2REEL7电路图
AD5061BRJZ-2REEL7封装焊盘图
